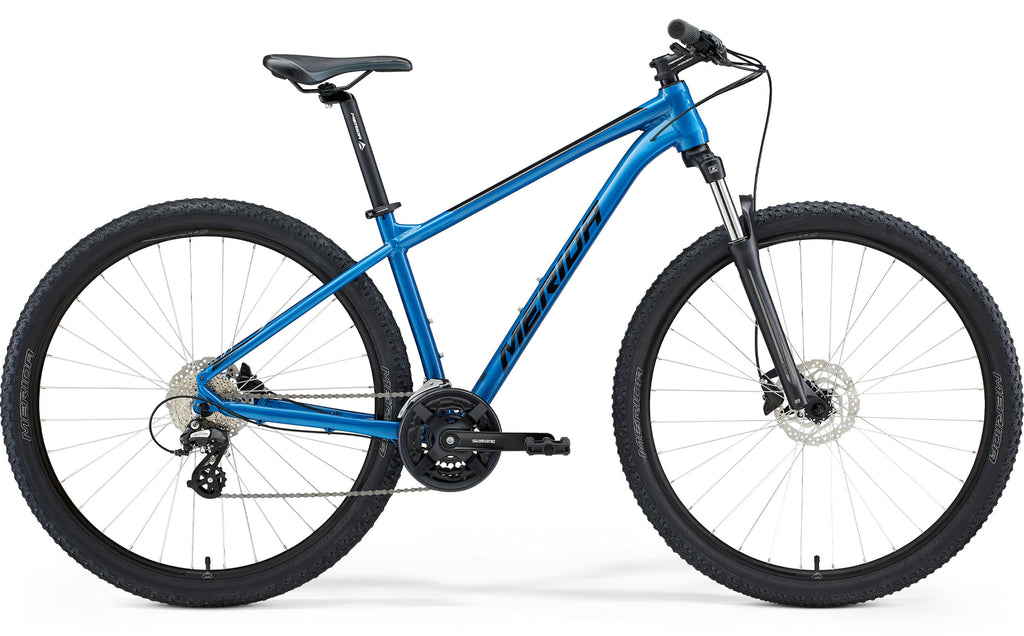

Merida Big Nine 15 Kit Frame (Blue)

Out of stock
MERIDA
Big Nine 15 Kit Frame: Your Adventure Starts Here Experience the trail with the Big Nine 15 Kit Frame, an entry-level 29er that's been enhanced for superior performance. This bike features a sophis...
Rs. 15,990.00

Big Nine 15 Kit Frame: Your Adventure Starts Here

Experience the trail with the Big Nine 15 Kit Frame, an entry-level 29er that's been enhanced for superior performance. This bike features a sophisticated TFS aluminum frame and is equipped with 24 gears and hydraulic disc brakes for reliable stopping power. You'll also find a wealth of Shimano componentry, including the chainset and hubs, ensuring smooth and dependable operation.

We've refined our UK lineup, elevating the Big Nine and Big Seven 15 models to incorporate the advanced TFS frame. Additionally, we've introduced the exclusive UK Big Nine and Big Seven 80, which boast a RockShox fork and Shimano Deore 1x12.

Frame Features for Enhanced Performance:

  • Full internal cable routing: Enjoy a sleek, uncluttered aesthetic and protected cables.
  • Tapered headtube: Provides the option for future upgrades and improved steering precision.
  • Inboard disc brake mounts: Designed to safeguard the brake system and optimize stopping power.

Reliability is a cornerstone of the Big Nine 15, reinforced by the extensive use of Shimano components throughout.

We offer a comprehensive range of sizes to suit every rider. The Big Nine is ideal for taller individuals, while the Big Seven is better suited for shorter riders, with a significant overlap in available sizes. For those in the middle, your preferred riding style can guide your choice: opt for a Big Nine if you prioritize speed and efficiency, or a Big Seven if agility is what you're after.

  • Sophisticated aluminium frame
  • Tapered head tube
  • Internal cable routing
  • 3 x 8 Shimano drivetrain
  • Hydraulic disc brakes
  • Shimano hubs & chainset

SPECIFICATIONS

Model year : 2022

Frame BIG.NINE TFS III
  • material: aluminium
  • 29x2.25" max. wheelsize
  • 135x9mm axle standard
  • BSA bottom bracket standard
  • MUK 5 Hanger

Frame size: M, L, XL

Fork Suntour: XCT30
  • Coil
  • 100mm suspension travel
  • 29x2.25" max. wheelsize
  • 17mm inner width
  • material: aluminium
  • 100x9mm width front hub
  • 32 spoke holes
  • Centerlock
  • 135x9mm width rear hub
  • 32 spoke holes
  • Centerlock
  • 29x2.2"
  • wire
  • 42-34-24 teeth
  • 170 mm-S, 175 mm-M/XXL
Bottom bracket: FSA TH-7420ST-W, Cartridge Bearing
  • 11-32 teeth
  • 8 speed
Chain Sunrace: M84
Shifters Shimano: ST-EF505
Front derailleur Shimano: FD-TY700
Rear derailleur Shimano: RD-M310

*2 piston hydraulic disc brake

*160mm

Headset Merida: M2345
  • material: aluminium
  • 31.8mm diameter
  • 6° stem angle
  • 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
  • material: aluminium
  • 690mm width
  • 15mm rise
Grip: Merida EC
  • material: aluminium
  • 30.9mm diameter
  • 15mm setback
Pedal: VP VPE-891

weighed with 27.5" wheels and at frame size M, without pedals

GEOMETRIES

Frame Size M L XL
Tyre Sizes 29" 29" 29"
St Seat Tubes mm 430 470 510
Tt Top Tubes mm 590 610 630
Cs Chain Stays mm 440 440 440
HTA head tube angle [°] 70 70 70
STA seat tube angle [°] 73 73 73
Bd Bottom Bracket Drops mm 60 60 60
Ht Head Tube Lengths mm 115 130 145
Fl Fork Lengths mm 506 506 506
R Reach mm 398 414 429
S Stacks mm 628 642 656
Wb Wheel Base mm 1090 1110 1131
Sh Stand Over Height mm 727 763 800

Diagram illustrating of Merida Big Nine 15 Kit Frame bicycle frame geometry with various labeled measurements.
