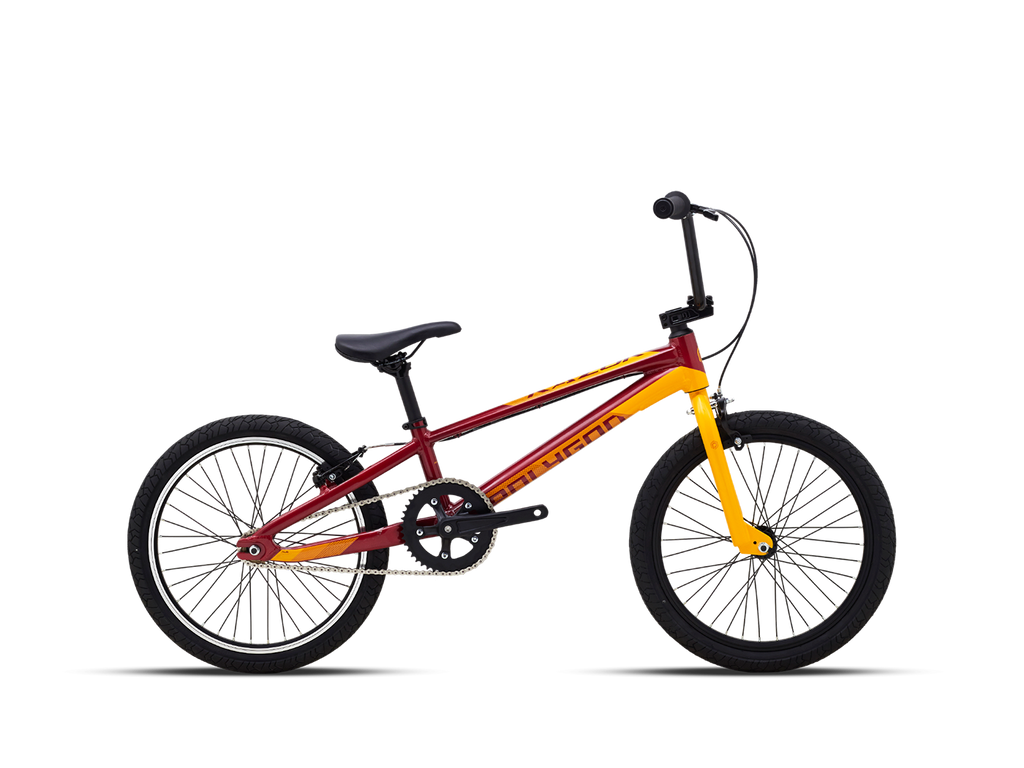

Polygon Razor BMX (Red)
In stock
Polygon
Polygon Razor
Unlock a life filled with exhilaration and freedom with the Polygon Razor BMX. This versatile machine is your perfect partner, whether you're cruising around town, tackling short off...
Polygon Razor
Unlock a life filled with exhilaration and freedom with the Polygon Razor BMX. This versatile machine is your perfect partner, whether you're cruising around town, tackling short off-road adventures, or competing in high-octane dirt-track BMX races.
The Polygon Razor is engineered to ignite your passion and elevate every ride. Its design prioritizes explosive acceleration for gate drops, razor-sharp cornering precision, and effortless handling over challenging doubles. Built upon a super lightweight and incredibly responsive frame, this BMX bike empowers you to develop and showcase your unique riding style. Prepare to command attention and turn heads wherever your wheels take you. Embrace the thrill – the Polygon Razor is more than just a bike; it's your ticket to an unforgettable journey.
SPECIFICATONS
FRAMESET
Frameset: ALX RACE FRAME
Fork: RIGID FORK, STRAIGHT 1-1/8" THREADLESS
Frame Color: RED MANGGO
Decal Color: FULVOUS
DRIVETRAIN
Shifter: -
Crank: SAMOX ALLOY 44T, 170mm
Cassette: FREEWHEEL SINGLE SPEED 16T
BB: ALLOY CARTRIDGE 68x113mm
Chain: KMC K1
Pedal: PP PEDALS W/PP CAGE & REFLECTOR
COCKPIT
Saddle: STEEL ø7mm
Seatpost: ALLOY, 27.2 x 300mm
Handlebar: STEEL, W: 710mm, BB: 22.2mm, R/D: 203mm
Handlestem: ALLOY, EXT: 50mm, BB: 22.2mm, R/D: 0degree
Headset: FEIMIN FP-H863B SEMI INTEGRATED THREADLESS, ZS 44/28.6 | ZS 44/30
WHEEL & TIRE
Tire: 20"x2.125"
Rim: ALLOY DOUBLE WALL
Hub: F: ALLOY 3/8x100mmx140mm 36H W/ FLANGE NUT / R: ALLOY 3/8x110mmx160mm 36H W/ WASHER & FLANGE NUT
BRAKE
Brake Lever: TEKTRO 319A ALLOY 2-FINGERS
Brake Caliper: F:810C ALLOY CALIPER DUAL PIVOT R:J-310 ALLOY V-BRAKE
GEOMETRY & SIZE CHART
| PRO | PRO_XL | |
|---|---|---|
| Height (cm) | 165-175 | 173-180 |
| Seat Tube Length (A) | 205 | 205 |
| Seat Tube Angle (B) | 72 | 72 |
| Effective Seat Tube Angle (C) | 72 | 72 |
| Head Tube Length (D) | 105 | 105 |
| Head Tube Angle (E) | 74 | 74 |
| Effective Top Tube (F) | 554.1 | 567.7 |
| Bb Height (G) | 292 | 292 |
| Bb Offset (H) | 36.5 | 36.5 |
| Chainstay Length (I) | 364 | 364 |
| Wheelbase (J) | 948.5 | 962.3 |
| Frame Reach (K) | 438 | 452 |
| Frame Stack (L) | 357 | 357 |
| Standover Height (M) | 480 | 480 |
