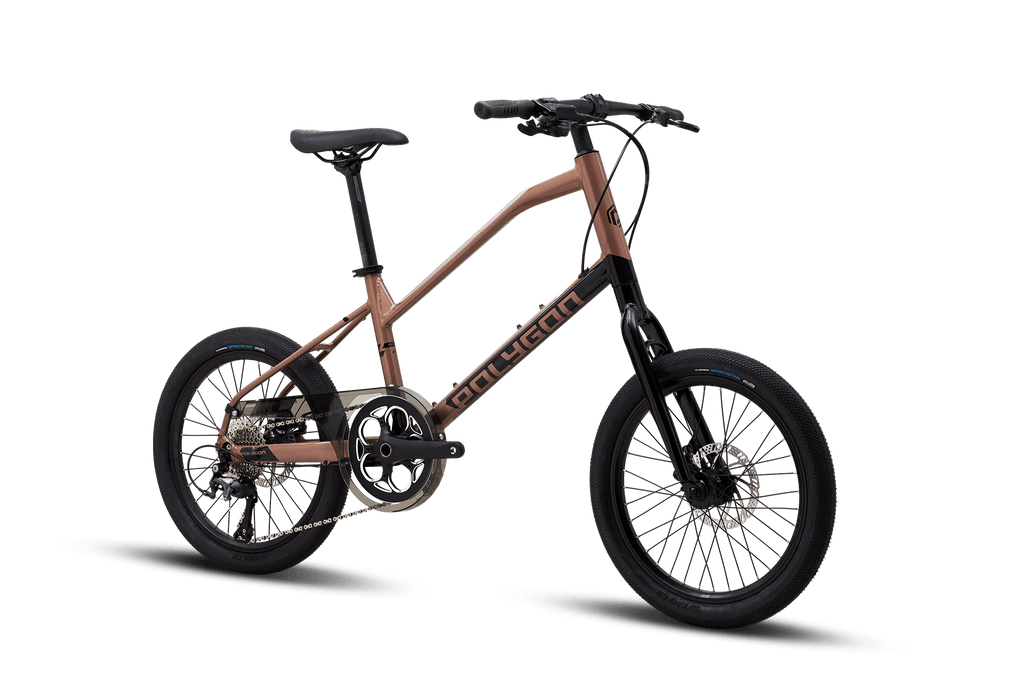

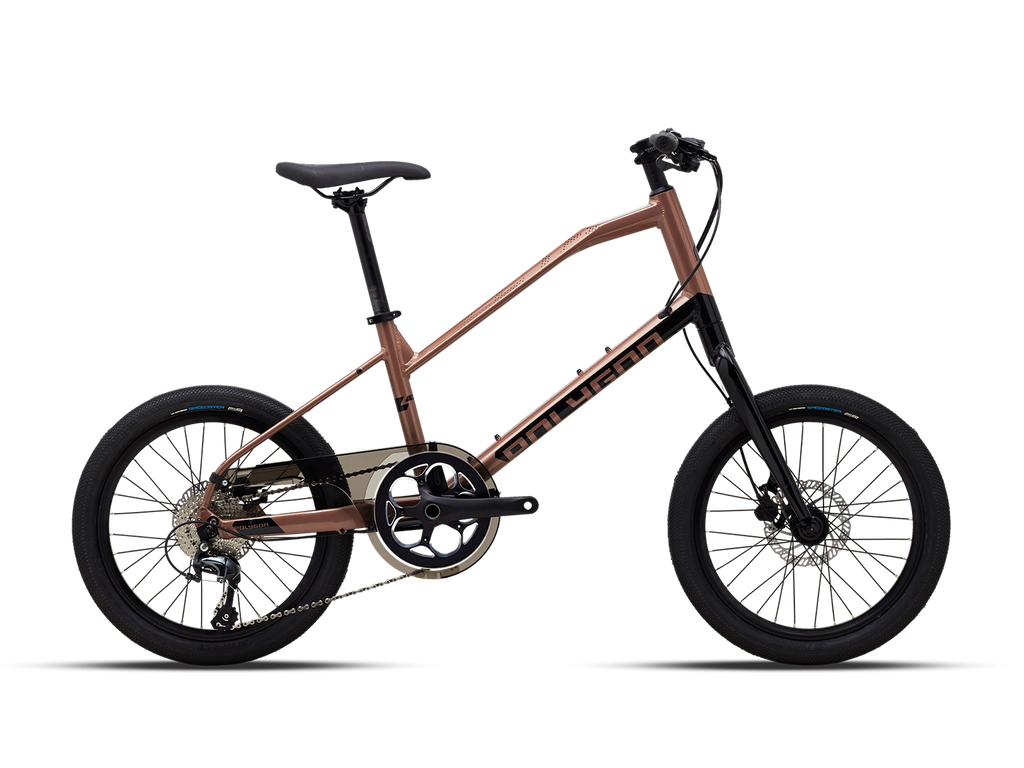

Polygon Zeta 2 AL6 Minivelo (Black/Brown)
Out of stock
Polygon
Born for you who strive for simplicity.
Polygon Mini Velo Zeta is a stylish full-sized bike built on the compact 20″ wheels with powerful brakes, fender ready, and rear carrier ready. Perfect for c...
Born for you who strive for simplicity.
Polygon Mini Velo Zeta is a stylish full-sized bike built on the compact 20″ wheels with powerful brakes, fender ready, and rear carrier ready. Perfect for city riding; easy to ride while still bring you the fun and the style.
SPECIFICATIONS
FRAMSET
Frameset: AL6 MINIVELO FRAME 20"
Fork: ALLOY RIGID FORK
DRIVETRAIN
Shifter: SHIMANO TIAGRA SL-4700, 1x10-SPEED RAPIDFIRE
Crank: ALLOY 48T 170MM
Cassette: SHIMANO CS-HG500 11-34T
Rear Derailleur: SHIMANO TIAGRA RD-4700 DIRECT ATTACH
BB: BSA THREADED FOR 2-PIECE CRANKSET
Chain: KMC CHAIN
COCKPIT
Saddle: ENTITY SADDLE
Seatpost: ENTITY SPORT ALLOY
Handlebar: ENTITY SPORT ALLOY, WIDTH 640MM, BAR BORE: 31.8MM, BEND: 6 DEGREE
Handlestem: ENTITY SPORT ALLOY, EXT: 45MM, BAR BORE: 31,8MM, RISE/DROP: 3DEGREE
Headset: ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, ZS 44/28.6 | ZS 44/30.
WHEEL & TIRE
Wheel Set: ALLOY DOUBLE WALL 406-21 32H FOR TYRE 406-20/35
Wheel Size: 20"
Tire: VEE SPEEDSTER 20"x2.0"
BRAKE
Brake Caliper: TEKTRO HD-M275 HYDRAULIC DISC BRAKE
GEOMETRY AND SIZE CHART
| All Size | |
|---|---|
| Height (cm) | 150-170 |
| Seat Tube Length (A) | 360 |
| Seat Tube Angle (B) | 74.5 |
| Effective Seat Tube Angle (C) | 74.5 |
| Head Tube Length (D) | 250 |
| Head Tube Angle (E) | 70 |
| Effective Top Tube (F) | 570 |
| Bb Height (G) | 290 |
| Bb Offset (H) | 35 |
| Chainstay Length (I) | 400 |
| Wheelbase (J) | 1078.5 |
| Frame Reach (K) | 412.5 |
| Frame Stack (L) | 567.9 |
| Standover Height (M) | 594 |
