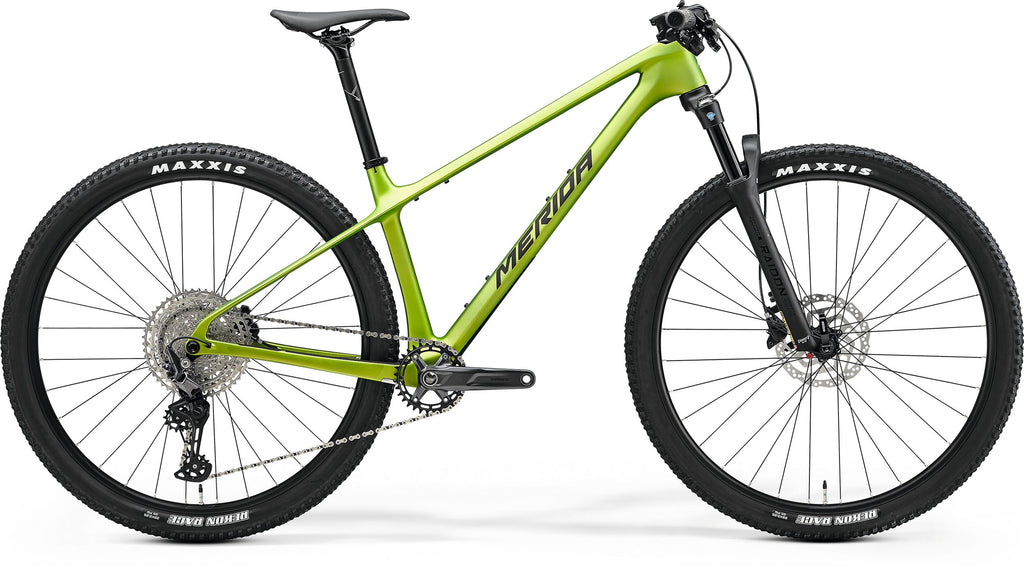

Merida BIG.NINE 3000 III1 (MATT FALL GREEN(BLK/SLV-GRN)
Merida BIG.NINE 3000 III1: Precision & Performance for XC Riding
The BIG.NINE 3000 serves as your ultimate starting point for both grand adventures and competitive cross-country events. It is built around a lightweight CF3 carbon fiber frame, utilizing our advanced AGILOMETER sizing system and progressive geometry, which together provide rapid responsiveness along with surprisingly capable downhill performance and comfort. Bumps are easily managed by the 100 mm travel SR Suntour fork, while the Shimano 12-speed drivetrain and hydraulic disc brakes enable you to fully leverage the traction provided by the high-volume 2.4" tires.
Mountain biking is among the most varied and equipment-intensive cycling disciplines. While full suspension bikes offer exceptional ride characteristics, the classic hardtail endures as a pure, effective choice. Our BIG.NINE range, fitted with 29er wheels, comes in both carbon and aluminum, featuring diverse geometry options. The revised CF carbon and LITE aluminum-framed BIG.NINE models present truly modern geometry, providing greater standover clearance and improved handling stability to excel on contemporary race courses. Downcountry-ready TR versions are available for a more aggressive setup, boosting fork travel and including aggressive tires and dropper posts. For a more relaxed posture, the BIG.NINE TFS and SPEED models offer a comfortable, upright riding position. These classic hardtails form the backbone of our collection, embodying the vast experience and knowledge accumulated through over half a century of bicycle manufacturing. The BIG.NINE range perfectly integrates modern frame technology, meticulous attention to detail, and the craftsmanship epitomized by 'Made in Taiwan'.
- Lightweight CF3 carbon fibre frame with 2.4" tyre clearance
- Progressive geometry with AGILOMETER sizing for confident handling
- SR Suntour fork with 100 mm travel and remote lockout
- Shimano Deore 12-speed drivetrain for crisp shifting
- Fast rolling Maxxis tyres with MERIDA rims on Shimano hubs
- Powerful Shimano hydraulic disc brakes
SPECIFICATIONS
- material: carbon
- 29x2.4" max wheelsize
- 148x12mm axle standard
- BSA bottom bracket standard
- Air
- 100mm suspension travel
- Tapered
- Remote lockout
- 29x2.4" max. wheelsize
- 46 mm fork offset
- 2 piston
- 180mm
- Upper and lower IPS sealing
- material: aluminium
- 760mm width
- flat
- material: aluminium
- 31.8mm diameter
- 6° stem angle
- S, M: 60 mm, L, XL: 70 mm, XXL: 80 mm
- SGS
- material: aluminium
- 30.9mm diameter
- 0mm setback
- 25% recycled material
- V-mount
- 32 teeth
- 170 mm (S), 175 mm-M up
- 10-51 teeth
- 12 speed
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 148x12mm width rear hub
- 32 spoke holes
- Centerlock
- 25mm inner width
- material: aluminium
- tubeless ready
- 29x2.25"
- wire
- 29x2.25"
- wire
- including removeable lever, 6/4mm allen key
Frame Size | S | M | L | XL | XXL |
Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
ST seat tube [mm] | 380 | 410 | 440 | 470 | 500 |
TT top tube [mm] | 591 | 611 | 633 | 655 | 678 |
CS chain stay length [mm] | 430 | 433 | 436 | 439 | 442 |
HTA head tube angle [°] | 68 | 68 | 68 | 68 | 68 |
STA seat tube angle [°] | 75.3 | 75.3 | 75.3 | 75.3 | 75.3 |
BD bottom bracket drop [mm] | 65 | 65 | 65 | 65 | 65 |
HT head tube [mm] | 95 | 95 | 105 | 115 | 125 |
FL fork length [mm] | 506 | 506 | 506 | 506 | 506 |
R reach [mm] | 432 | 452 | 472 | 492 | 512 |
S stack [mm] | 606 | 606 | 615 | 624 | 634 |
WB wheel base [mm] | 1123 | 1146 | 1173 | 1199 | 1226 |
SH stand over height [mm] | 704 | 704 | 710 | 731 | 752 |
