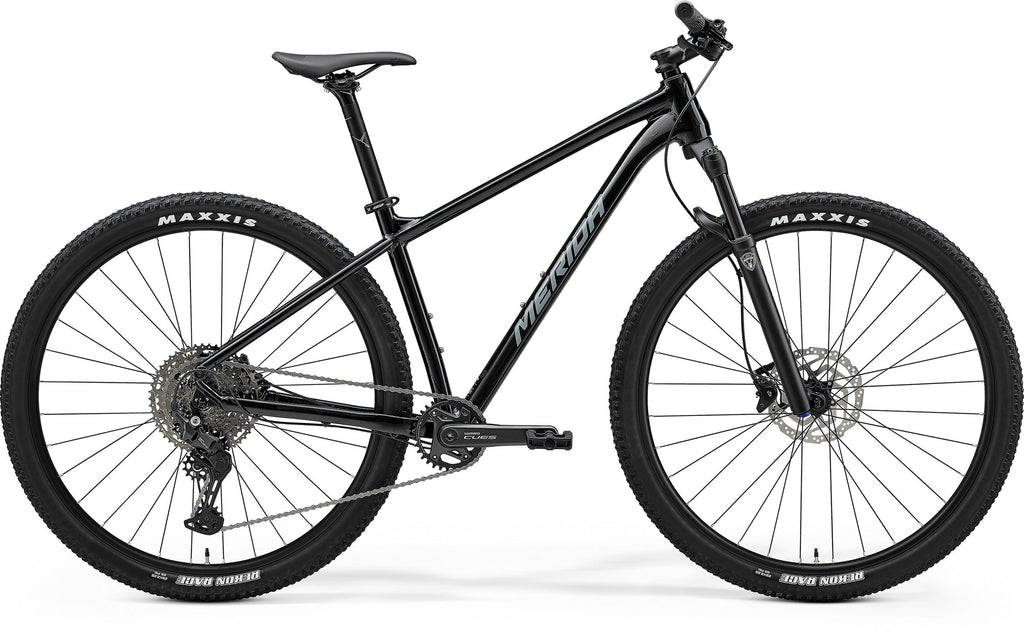

Merida BIG.NINE 400 IV1 (METALLIC BLACK GREY)
Discover the BIG.NINE 400 IV1, a 29er aluminum hardtail designed with comfort geometry. It comes complete with a Manitou Markhor air suspension fork, a single chainring 11-speed Shimano drivetrain, and reliable Shimano hydraulic disc brakes. This bike is perfectly suited for navigating both rugged trails and the city landscape.
With more than five decades of design and manufacturing experience, the BIG.NINE 400 exemplifies the core of our international business. As a top-selling model, the 400 incorporates our well-regarded double-butted aluminum frame, a 100mm Manitou air suspension fork, an incredibly smooth and highly dependable Shimano 11-speed drivetrain, and easy-to-modulate yet powerful Shimano hydraulic disc brakes. Join the MERIDA family.
Mountain biking is one of the most varied cycling disciplines, and arguably the most demanding when it comes to equipment. While full suspension bikes deliver impressive characteristics, the classic hardtail endures as a pure and effective tool. Our 29er wheel-equipped BIG.NINE range offers both carbon and aluminum constructions, along with diverse geometry choices. The refreshed CF carbon and LITE aluminum-framed BIG.NINE models feature modern geometry with improved standover clearance and handling stability, designed to better tackle the tough race tracks of today. Additionally, downcountry-ready TR options provide increased fork travel, aggressive tires, and dropper posts. The BIG.NINE TFS and SPEED models feature a more relaxed geometry, ensuring a comfortable, upright riding position. Our classic hardtails are foundational to our product lineup, showcasing the deep wealth of experience and knowledge gained from over half a century of bike manufacturing. The BIG.NINE range represents the symbiosis between cutting-edge frame technology, meticulous attention to detail, and the craftsmanship 'Made in Taiwan' symbolises.
- Double butted, smooth welded aluminium frame with 29er wheels
- Less aggressive and more upright geometry for maximum control and comfort
- Manitou Markhor 100 mm travel suspension fork with remote lockout
- Shimano CUES 11-speed drivetrain
- Shimano hydraulic disc brakes
- Internal cable routing
SPECIFICATIONS
- material: aluminum
- 29 wheelsize
- 135x9mm axle standard
- BSA bottom bracket standard
- Smooth welding
- Air
- 100mm suspension travel
- Tapered
- Lockout
- 51mm fork offset
- 2 piston
- 180mm
- 160mm
- material: aluminium
- 720mm width
- 10mm rise
- material: aluminium
- 31.8mm diameter
- 7° stem angle
- S: 70 mm, M: 80 mm, L: 90 mm, XL: 100 mm, XXL: 110 mm
- material: aluminium
- 30.9mm diameter
- 0mm setback
- 25% recycled material
- V-mount
- 32 teeth
- 170 mm (S), 175 mm-M up
- 11-50 teeth
- 11 speed
- 100x9mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 32 spoke holes
- Centerlock
- 25mm inner width
- material: aluminium
- tubeless ready
- 29x2.25"
- wire
- 29x2.25"
- wire
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Max. weight: 135 kg
GEOMETRIES
Frame Size | S | M | L | XL | XXL |
Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
ST seat tube [mm] | 370 | 430 | 470 | 510 | 560 |
TT top tube [mm] | 570 | 590 | 610 | 630 | 650 |
CS chain stay length [mm] | 440 | 440 | 440 | 440 | 440 |
HTA head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
STA seat tube angle [°] | 73 | 73 | 73 | 73 | 73 |
BD bottom bracket drop [mm] | 60 | 60 | 60 | 60 | 60 |
HT head tube [mm] | 100 | 115 | 130 | 145 | 160 |
FL fork length [mm] | 506 | 506 | 506 | 506 | 506 |
R reach [mm] | 382 | 398 | 414 | 429 | 445 |
S stack [mm] | 614 | 628 | 642 | 656 | 670 |
WB wheel base [mm] | 1069 | 1090 | 1110 | 1131 | 1152 |
SH stand over height [mm] | 679 | 727 | 763 | 800 | 843 |
