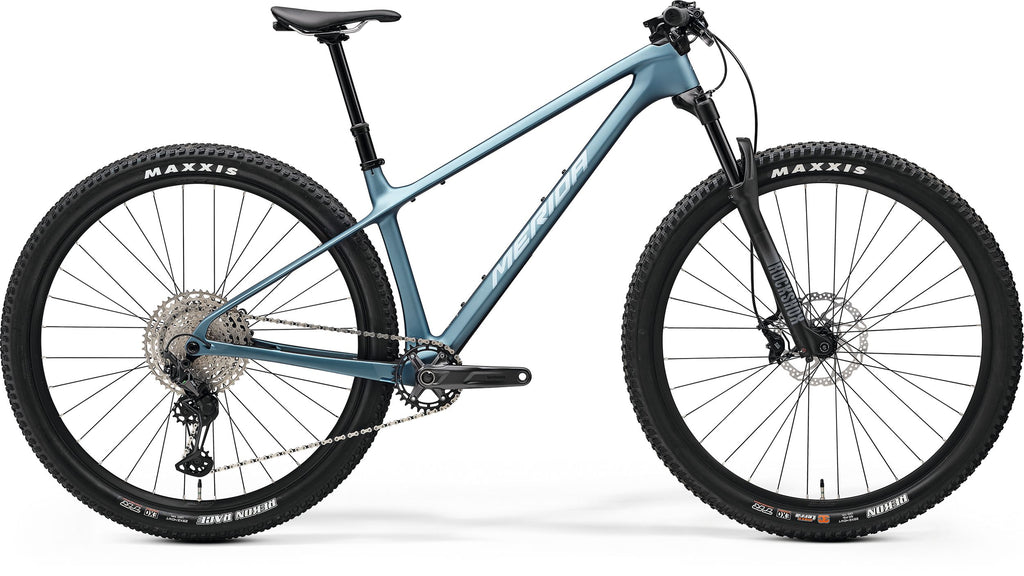

Merida BIG.NINE TR 5000 III1 (SILK STEEL BLUE BLUE)
Merida BIG.NINE TR 5000 III1: Trail-Ready XC Hardtail
The BIG.NINE TR 5000 combines blistering uphill efficiency with confident descending capability, setting a new standard for cross-country hardtails. This machine features an extended 120 mm travel RockShox fork, coupled with more aggressive, high-volume tires, and our proprietary lightweight dropper post. These components are integrated onto a CF3 carbon frame that benefits from progressive geometry and our unique AGILOMETER sizing. When you factor in the benchmark precision and reliability of Shimano's XT 12-speed drivetrain, you have a bike ready for anything.
Mountain biking is one of the most varied and equipment-intensive cycling disciplines. While full suspension bikes offer exceptional ride characteristics, the classic hardtail endures as a pure, effective choice. Our BIG.NINE range, fitted with 29er wheels, comes in both carbon and aluminum, featuring diverse geometry options. The revised CF carbon and LITE aluminum-framed BIG.NINE models present truly modern geometry, providing greater standover clearance and improved handling stability to excel on contemporary race courses. Downcountry-ready TR versions are available for a more aggressive setup, boosting fork travel and including aggressive tires and dropper posts. For a more relaxed posture, the BIG.NINE TFS and SPEED models offer a comfortable, upright riding position. These classic hardtails form the backbone of our collection, embodying the vast experience and knowledge accumulated through over half a century of bicycle manufacturing. The BIG.NINE range perfectly integrates modern frame technology, meticulous attention to detail, and the craftsmanship epitomized by 'Made in Taiwan'.
- Lightweight CF3 carbon fibre frame with 2.4" tyre clearance
- Progressive geometry with AGILOMETER sizing for confident handling
- RockShox Judy fork with 120 mm travel for improved descending ability
- Wide range Shimano 12-speed drivetrain
- MERIDA wheelset with trail-ready Maxxis tyres
- Lightweight MERIDA dropper seatpost with remote lever
SPECIFICATIONS
- 2 piston
- material: carbon
- 29x2.4" max wheelsize
- 148x12mm axle standard
- BSA bottom bracket standard
- Air
- 120mm suspension travel
- Tapered
- Remote lockout
- 51 mm fork offset
- 180mm
- 160mm
- 2 piston
- 2 piston
- 32 teeth
- 170 mm (S), 175 mm-M up
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 148x12mm width rear hub
- 32 spoke holes
- Centerlock
- 25mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 10-51 teeth
- 12 speed
- 29x2.4" WT
- tubeless ready
- 3C EXO
- 29x2.4" WT
- tubeless ready
- 3C MaxxTerra EXO
- material: aluminium
- 31.8mm diameter
- 6° stem angle
- incl. MERIDA SMART MOUNT
- S, M, L: 60 mm, XL, XXL 70 mm
- material: aluminium
- 760mm width
- flat
- Upper and lower IPS sealing
- 30.9mm diameter
- 0mm setback
- S/M: 150mm travel seatpost : L/XL/XXL: 170mm travel seatpost
- 6% recycled and 23% nature material
- V-mount
- incl. MERIDA minitool
Max. weight: 135 kg
GEOMETRIES
Frame Size | S | M | L | XL |
Tyre Sizes | 29" | 29" | 29" | 29" |
ST seat tube [mm] | 380 | 410 | 440 | 470 |
TT top tube [mm] | 594 | 614 | 637 | 659 |
CS chain stay length [mm] | 430 | 433 | 436 | 439 |
HTA head tube angle [°] | 66.9 | 66.9 | 66.9 | 66.9 |
STA seat tube angle [°] | 74.2 | 74.2 | 74.2 | 74.2 |
BD bottom bracket drop [mm] | 57 | 57 | 57 | 57 |
HT head tube [mm] | 95 | 95 | 105 | 115 |
FL fork length [mm] | 530 | 530 | 530 | 530 |
R reach [mm] | 420 | 440 | 460 | 480 |
S stack [mm] | 614 | 614 | 624 | 633 |
WB wheel base [mm] | 1132 | 1155 | 1182 | 1209 |
SH stand over height [mm] | 711 | 711 | 717 | 738 |
