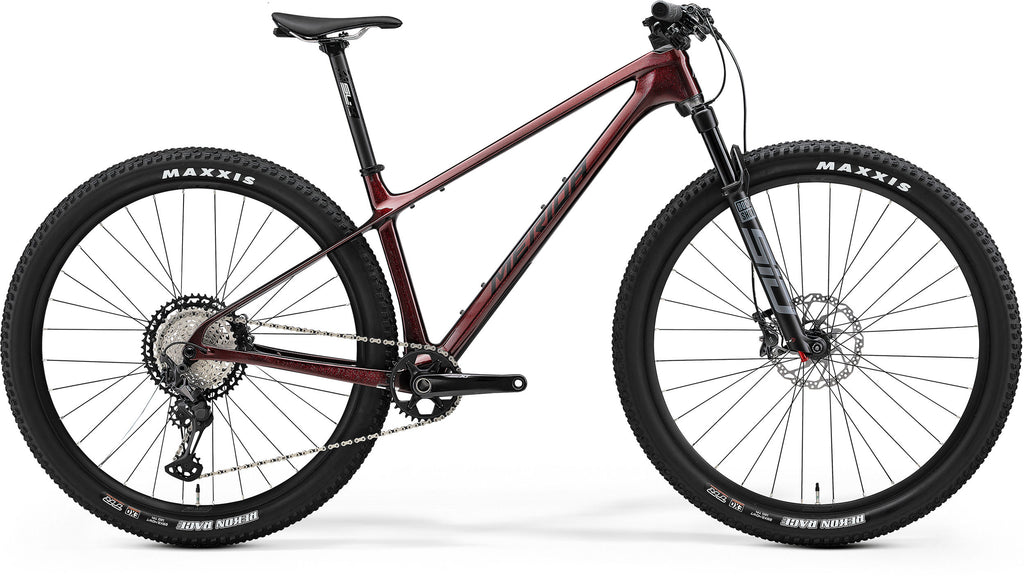

Merida BIG.NINE XT III1 (BURGUNDY RED BLACK)

Merida BIG.NINE XT III1: Dominate Modern XC Tracks

Today's cross-country race tracks demand more than ever, which is precisely why the latest BIG.NINE XT has been engineered for unparalleled capability. It features a lightweight CF3 carbon frame with ample clearance for 2.4" tires, combined with progressive geometry and AGILOMETER sizing. This design ensures enhanced comfort and control while preserving the blistering uphill speed essential for racers. The RockShox SID fork provides 100 mm of precisely controlled travel with a convenient bar-mounted lockout, and Shimano's renowned 12-speed XT drivetrain delivers consistently precise shifts.

Mountain biking is among the most diverse cycling disciplines, and arguably the most demanding in terms of equipment. While full suspension bikes offer impressive riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel-equipped BIG.NINE range is available in both carbon and aluminum, offering multiple geometry options. The updated CF carbon and LITE aluminum-framed BIG.NINE models boast truly modern geometry with increased standover clearance and enhanced handling stability to better navigate today's challenging race tracks. For a more aggressive setup, downcountry-ready TR options boost fork travel and include aggressive tires and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED models provides a more comfortable, upright riding position. Our classic hardtails are the cornerstone of our lineup, showcasing the extensive experience and knowledge gained over half a century of bike production and manufacturing. The BIG.NINE range represents the perfect synergy of modern frame technology, meticulous attention to detail, and the craftsmanship symbolized by 'Made in Taiwan'.

• Lightweight CF3 carbon fibre frame with 2.4" tyre clearance
• Progressive geometry with AGILOMETER sizing for confident handling
• RockShox SID fork with 100 mm travel and remote lockout
• Shimano XT 12-speed drivetrain for crisp shifting
• Fast rolling Maxxis tyres with MERIDA rims on Shimano XT hubs
• Carbon fibre seatpost for improved comfort

SPECIFICATIONS

Frame:  BIG.NINE CF3 III

• material: carbon
• 29x2.4" max. wheelsize
• 148x12 mm axle standard
• BSA bottom bracket standard

Frame size:  S, M, L, XL, XXL

Fork:  Rock Shox SID SL

• Air
• 100 mm suspension travel
• Tapered
• 2 position remote lockout
• 29x2.4" max. wheelsize
• 44 mm fork offset

Color: BURGUNDY RED (BLACK/SILVER)

Derailleur (r):  Shimano XT

• SGS

Rotors: Shimano RT5

• 180 mm
• 160 mm

Shifter rear:  Shimano XT M8100

• Multi Release

Brake front:  Shimano XT M8100

• 2 piston

Brake rear:  Shimano XT M8110

• 2 piston

Chain:  KMC X12

Crank:  Shimano XT

• 34 teeth
• 170 mm-S, 175 mm-M up\

Hub front:  Shimano XT

• 110x15 mm width front hub
• 32 spoke holes
• Centerlock

Hub rear:  Shimano XT

• 148x12 mm width rear hub, 32 spoke holes
• Centerlock

Rim:  MERIDA EXPERT CC II

• 25 mm inner width
• material: aluminium
• Tubeless ready (tubeless tape and valves not included)

Freewheel:  Shimano XT

• 10-51 teeth
• 12 speed

Tyre front:  Maxxis Rekon Race

• 29x2.4" WT
• tubeless ready
• 3C MaxxTerra EXO

Tyre rear:  Maxxis Rekon Race

• 29x2.4" WT
• tubeless ready
• 3C MaxxTerra EXO

Spokes:  Double Butted Black stainless

Handlebar stem:  MERIDA TEAM CC III

• material: aluminium
• 31.8 mm diameter
• -6° stem angle
• incl. MERIDA SMART MOUNT
• S, M: 60 mm, L, XL: 70 mm, XXL: 80 mm

Handlebar:  MERIDA EXPERT CC

• material: aluminium
• 760 mm width
• flat

Headset:  Acros ICR MERIDA INTEGRATED

• Upper and lower IPS sealing

Seat post:  FSA SL-K

• material: carbon
• 30.9 mm diameter
• 0 mm setback
• size S and M: 400 mm
• size L, XL and XXL: 450 mm

Saddle:  MERIDA EXPERT SL

• V-mount
• incl. MERIDA minitool

Approx. weight:  10.4 kg

• weighed at frame size M
• Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

Max. weight:  135 kg

• Total weight of bike, rider and luggage

GEOMETRIES

Frame Size	S	M	L	XL	XXL
Tyre Sizes	29"	29"	29"	29"	29"
ST seat tube [mm]	380	410	440	470	500
TT top tube [mm]	591	611	633	655	678
CS chain stay length [mm]	430	433	436	439	442
HTA head tube angle [°]	68	68	68	68	68
STA seat tube angle [°]	75.3	75.3	75.3	75.3	75.3
BD bottom bracket drop [mm]	65	65	65	65	65
HT head tube [mm]	95	95	105	115	125
FL fork length [mm]	506	506	506	506	506
R reach [mm]	432	452	472	492	512
S stack [mm]	606	606	615	624	634
WB wheel base [mm]	1123	1146	1173	1199	1226
SH stand over height [mm]	704	704	710	731	752
