Polygon Heist X5CRM47
Out of stock
Polygon

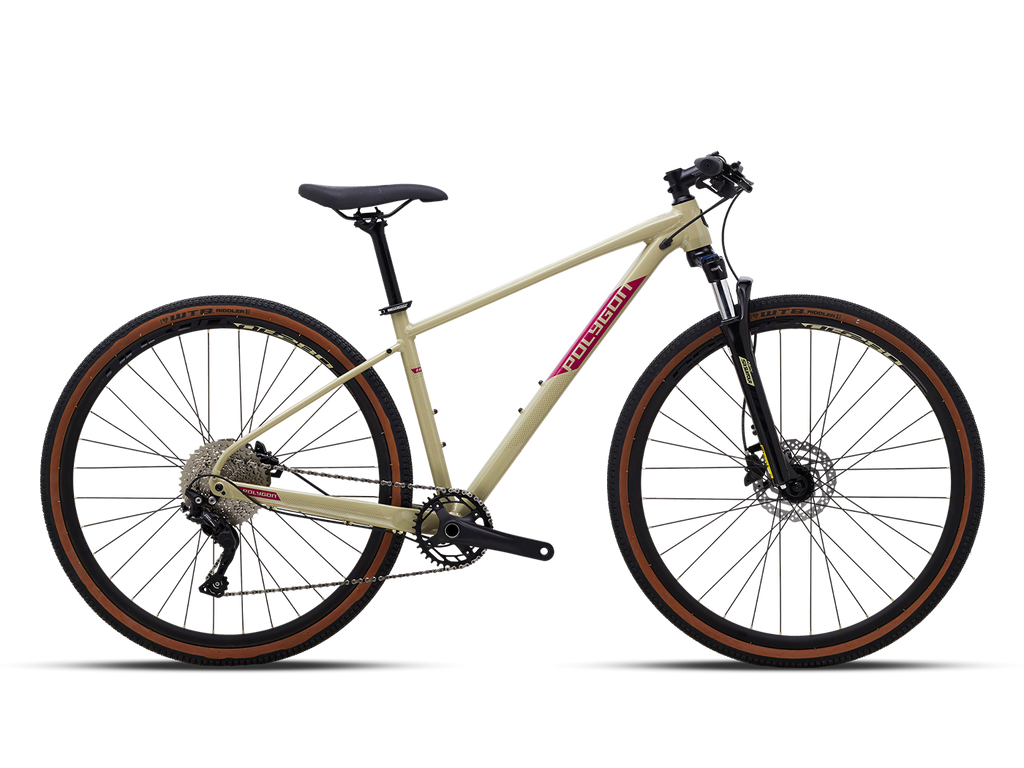

Heist X: Effortless Performance for Every Journey
The Polygon Heist X is meticulously engineered for the diverse demands of urban environments and capable of handling light off-road adventures. ...
Heist X: Effortless Performance for Every Journey
The Polygon Heist X is meticulously engineered for the diverse demands of urban environments and capable of handling light off-road adventures. In today's fast-paced world, the Heist X is your ultimate companion, offering effortless shifting with its intuitive 1x groupset. Experience confident and powerful stopping in all conditions, coupled with minimal maintenance, thanks to its reliable hydraulic disc brakes. Furthermore, its low rolling resistance tires are designed to propel you to your destination quicker than ever before. Embark on longer rides and rediscover the joy of cycling; the Heist X is crafted to deliver an unparalleled riding experience.
FEATURES
EASIER SHIFT, BETTER EXPERIENCE
There’s more in less. The biggest advantage from a 1x drivetrain is it lets you focus on your ride, instead of constantly adjusting gears. Now you can have more and better experience on trails.

GET FASTER ON TRAILS
Accompanied with low rolling resistance tires to reduce the energy loss as a tire rolls, decreasing the required rolling effort. Enabling you to get wherever you’re heading to faster than before.

ROUGH CONDITIONS WON’T STOP US
With its suspension fork to smooth out the ride, and Hydraulic Disc Brakes that lets you experience a smooth and powerful braking performance; believe me, there’s no condition that can stop you to explore more.

SPECIFICATION
Specifications, colors, and product availability are subject to change without prior notice.
FRAMESET
Frameset: AL6 URBAN CROSS, 12x142mm O.L.D. 2HRU
Fork: SUNTOUR NVX, PRELOAD ADJUSTER, HYDRAULIC LOCK OUT, STRAIGHT 1-1/8" THREADLES
Rear Shock: -
DRIVETRAIN
Shifter: SHIMANO DEORE SL-M6000/SL-M4100, 1X10 SPEED TRIGGER
Crank: PROWHEEL CHARM 36T 2-PIECE-CRANK, CRANK ARM: 170mm
Cassette: SHIMANO CS-HG500, 10-SPEED 11-42T
Rear Derailleur: SHIMANO DEORE RD-M6000/RD-M4120 DIRECT ATTACH
BB: THREADED BB, BSA THREADED 68mm
Chain: KMC X10-1
Pedal: PP CAGE PEDAL W/ REFLECTOR
COCKPIT
Saddle: ENTITY SADDLE, STEEL ø 7mm
Seatpost: ENTITY XPERT, DXL: 27.2X350mm, OFFSET: 15mm, SEAT CLAMP: 31.8mm W/ QR
Handlebar: ENTITY XPERT, EXT: 700mm, BAR BORE: 31.8mm, RISE/DROP: 0mm, BEND: 6degree
Handlestem: ENTITY XPERT, EXT: 60mm (400, 431) / 80mm (470, 516), BAR BORE: 31.8mm, RISE/DROP: 7degree
Headset: INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40
WHEEL & TIRE
Wheel Set: ALLOY DOUBLE WALL
Wheel Size: 700
Tire: WTB RIDDLER TIRE 700X45C
Rim: -
Hub: -
Spokes: -
BRAKE
Brake Lever: SHIMANO BR-MT201 HYDRAULIC DISC BRAKE
Brake Caliper: SHIMANO BR-MT201 HYDRAULIC DISC BRAKE
Rotor: SHIMANO SM-RT26 160mm 6-BOLTS
GEOMETRY & SIZE CHART
S | M | L | XL | |
---|---|---|---|---|
Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
Seat Tube Length (A) | 400 | 431 | 470 | 516 |
Seat Tube Angle (B) | 74 | 74 | 74 | 71 |
Effective Seat Tube Angle (C) | 74 | 74 | 74 | 71 |
Head Tube Length (D) | 90 | 90 | 100 | 110 |
Head Tube Angle (E) | 71 | 71 | 71 | 71 |
Effective Top Tube (F) | 563.12 | 593.12 | 620.8 | 648.54 |
Bb Height (G) | 289.5 | 289.5 | 289.5 | 289.5 |
Bb Offset (H) | 70 | 70 | 70 | 70 |
Chainstay Length (I) | 440 | 440 | 440 | 440 |
Wheelbase (J) | 1063.12 | 1093.12 | 1121.43 | 1149.63 |
Frame Reach (K) | 385 | 415 | 440 | 465 |
Frame Stack (L) | 621.18 | 621.18 | 630.64 | 640.1 |
Standover Height (M) | 688.3 | 708.7 | 742.5 | 781.5 |
