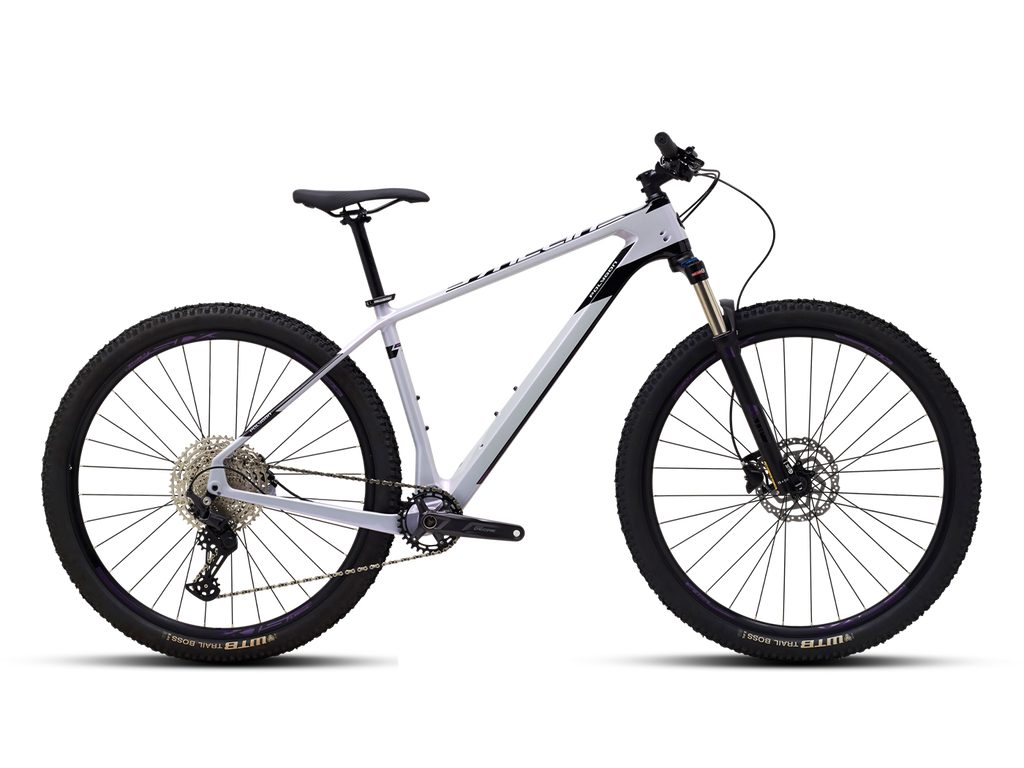

Polygon Syncline C2 27.5 (GREY)
In stock
Polygon
Designed as a top performing XC trail machine with modern geometry.
Featuring an ultra light and stiff carbon frame designed around 27.5 wheels, this bike will keep you rolling on cross country to...
Designed as a top performing XC trail machine with modern geometry.
Featuring an ultra light and stiff carbon frame designed around 27.5 wheels, this bike will keep you rolling on cross country to technical tracks smoothly with style. This is for you, trail seeker. Whether you are looking for fun off-road riding or cross-country enthusiast striving for podiums, get ready to cross every boundary and seize your own journey.
SPECIFICATIONS
FRAMESET
Frameset: ACX XC PERFORMANCE
Fork: SUNTOUR XCR 32 LO-R, 120mm TRAVEL
Rear Shock: -
DRIVETRAIN
Shifter: SHIMANO DEORE SL-M5100, 1x11 SPEED
Crank: SHIMANO DEORE FC-M5100 32T
Cassette: 11 Speed 11-51T
Rear Derailleur: SHIMANO DEORE RD-M5100
BB: SHIMANO MT500
Chain: KMC X11-1
COCKPIT
Saddle: ENTITY VOID SADDLE
Seatpost: ENTITY XPERT, ALLOY
Handlebar: ENTITY XPERT, ALLOY
Handlestem: ENTITY XPERT, ALLOY
Headset: THREADLESS INTEGRATED HEADSET
WHEEL & TIRE
Wheel Set: ALLOY DOUBLE WALL 32H
Wheel Size: 27.5"
Tire: WTB TRAIL BOSS 27.5"x2.25" / 29"x2.25"
Rim: 584-22 / 622-22 32H FOR TYRE 584 / 622-35/68
BRAKE
Brake Lever: SHIMANO MT200 HYDRAULIC DISC BRAKE
Brake Caliper: SHIMANO MT200 HYDRAULIC DISC BRAKE
Rotor: FRONT:180mm REAR:160mm CENTER-LOCK
GEOMETRY AND SIZE CHART
| S (27.5”) | M (27.5”) | M (29”) | L (29”) | XL (29”) | |
|---|---|---|---|---|---|
| Height (cm) | 155-165 | 165-175 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 380 | 420 | 420 | 460 | 500 |
| Seat Tube Angle (B) | 73 | 73 | 73 | 73 | 73 |
| Effective Seat Tube Angle (C) | 75.3 | 75.3 | 75.3 | 75.3 | 75.3 |
| Head Tube Length (D) | 100 | 120 | 100 | 120 | 140 |
| Head Tube Angle (E) | 67 | 67 | 67 | 67 | 67 |
| Effective Top Tube (F) | 569 | 594.6 | 597.7 | 621 | 649.15 |
| Bb Height (G) | 308.5 | 308.5 | 307.5 | 307.5 | 307.5 |
| Bb Offset (H) | 45 | 45 | 65 | 65 | 65 |
| Chainstay Length (I) | 425 | 425 | 435 | 435 | 435 |
| Wheelbase (J) | 1106.94 | 1134.8 | 1149.5 | 1176.9 | 1204.76 |
| Frame Reach (K) | 410 | 430 | 430 | 450 | 470 |
| Frame Stack (L) | 596.6 | 615 | 633.2 | 651.6 | 670 |
| Standover Height (M) | 690.9 | 729.2 | 730.8 | 763.7 | 779.2 |
