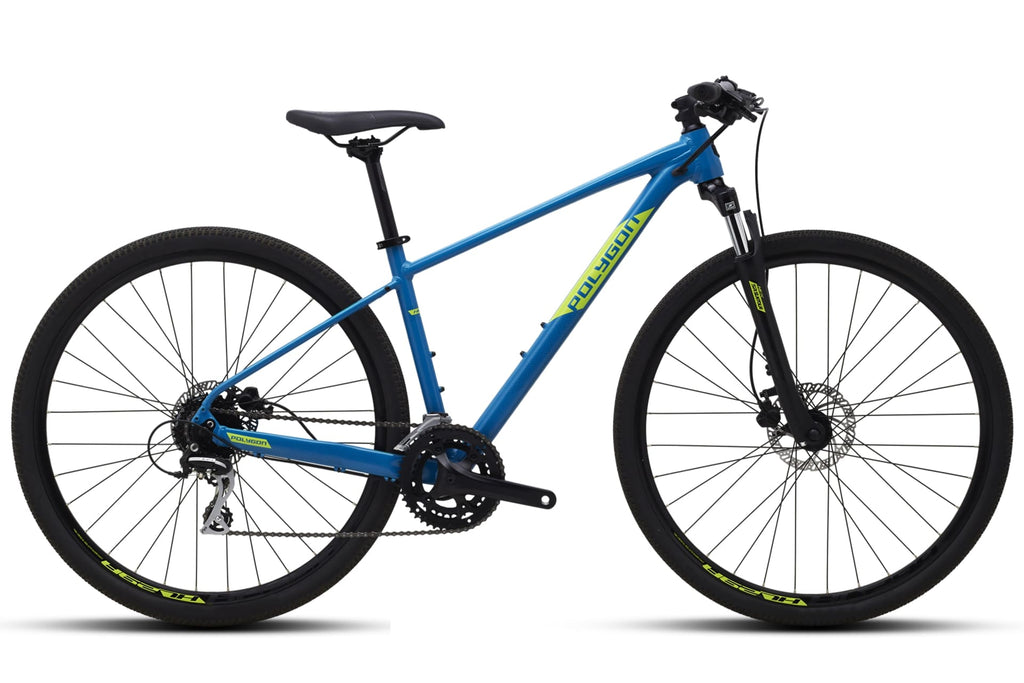

Polygon Heist X2-(Blue)
In stock
Polygon
REACH WIDER
YOUR ALL-DAY CHOICE FOR ALL-URBAN TERRAINS
By bringing Heist X, we bring you a bike that is designed best for any urban terrains and light off-road. And yes, life is getting faster and harder, and Heist X is here - with its 1x Groupset you can shift easier; the reliable hydraulic disc brakes provide you a powerful stopping in any condition and easier maintenance; and take you wherever you’re heading to faster than before with its low rolling resistance tire. As you cruise farther, Heist X is here to bring you the best riding feels ever.
Specifications
-
Frameset
AL6 URBAN CROSS, QRx135 O.L.D.
-
Fork
SUNTOUR NEX, PRELOAD ADJUSTER, STRAIGHT 1-1/8" THREADLESS
-
Shifter
SHIMANO ALTUS SL-M315, 2X8 SPEED TRIGGER
-
Crank
PROWHEEL ALLOY 46/34T, MAX CHAINRING: 46/34T, CRANK ARM: 170mm (S, M) / 175mm (L, XL)
-
Cassette
SHIMANO CS-HG200 8-SPEED 12-32T
-
Derailleur
SHIMANO ACERA RD-M360 DIRECT ATTACH
-
BB
CARTRIDGE BEARING 68x119mm SQUARE
-
Chain
KMC Z-8.3
-
Pedal
PP CAGE PEDAL W/ REFLECTOR
-
Saddle
ENTITY SADDLE, STEEL ø 7mm
-
Seatpost
ENTITY XPERT, DXL: 27.2X350mm, OFFSET: 15mm, SEAT CLAMP: 31.8mm W/ QR
-
Handlebar
ENTITY XPERT, W: 700mm, BAR BORE: 31.8mm, RISE/DROP: 0mm, BEND: 6degree
-
Handlestem
ENTITY XPERT, EXT: 75mm, BAR BORE: 31.8mm, RISE/DROP: 10degree
-
Headset
INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBEINTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40
-
Wheel Set
ALLOY DOUBLE WALL
-
Wheel Size
700
-
Tire
WTB RIDDLER TIRE 700X45C
-
Brake Lever
HIGH PERFORMANCE HYDRAULIC DISC BRAKE, ROTOR: 160mm 6-BOLTS
-
Brake Caliper
HIGH PERFORMANCE HYDRAULIC DISC BRAKE, ROTOR: 160mm 6-BOLTS
-
Rotor
HIGH PERFORMANCE HYDRAULIC DISC BRAKE, ROTOR: 160mm 6-BOLTS
-
Weight
20 Kg
-
Color
Blue
-
Country of Origin
Indonesia
Size Chart
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 400 | 431 | 470 | 516 |
| Seat Tube Angle (B) | 74 | 74 | 74 | 74 |
| Effective Seat Tube Angle (C) | 74 | 74 | 74 | 74 |
| Head Tube Length (D) | 90 | 90 | 100 | 110 |
| Head Tube Angle (E) | 71 | 71 | 71 | 71 |
| Effective Top Tube (F) | 563.12 | 593.12 | 620.8 | 648.54 |
| Bb Height (G) | 289.5 | 289.5 | 289.5 | 289.5 |
| Bb Offset (H) | 70 | 70 | 70 | 70 |
| Chainstay Length (I) | 440 | 440 | 440 | 440 |
| Wheelbase (J) | 1063.12 | 1093.12 | 1121.43 | 1149.63 |
| Frame Reach (K) | 385 | 415 | 440 | 465 |
| Frame Stack (L) | 621.18 | 621.18 | 630.64 | 640.1 |
| Standover Height (M) | 688.3 | 708.7 | 742.5 | 781.5 |
