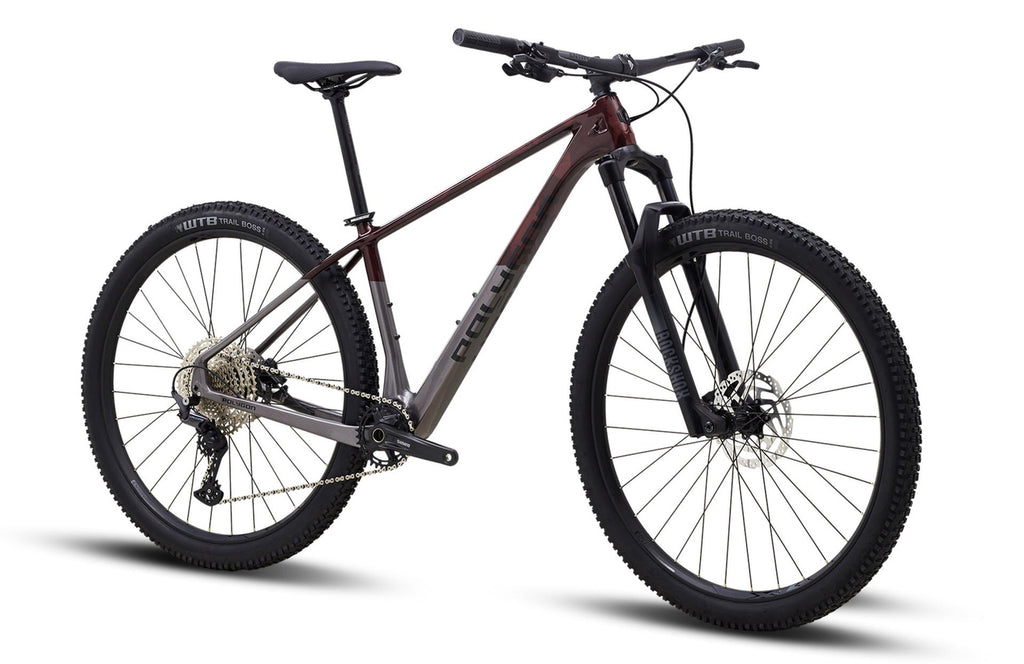

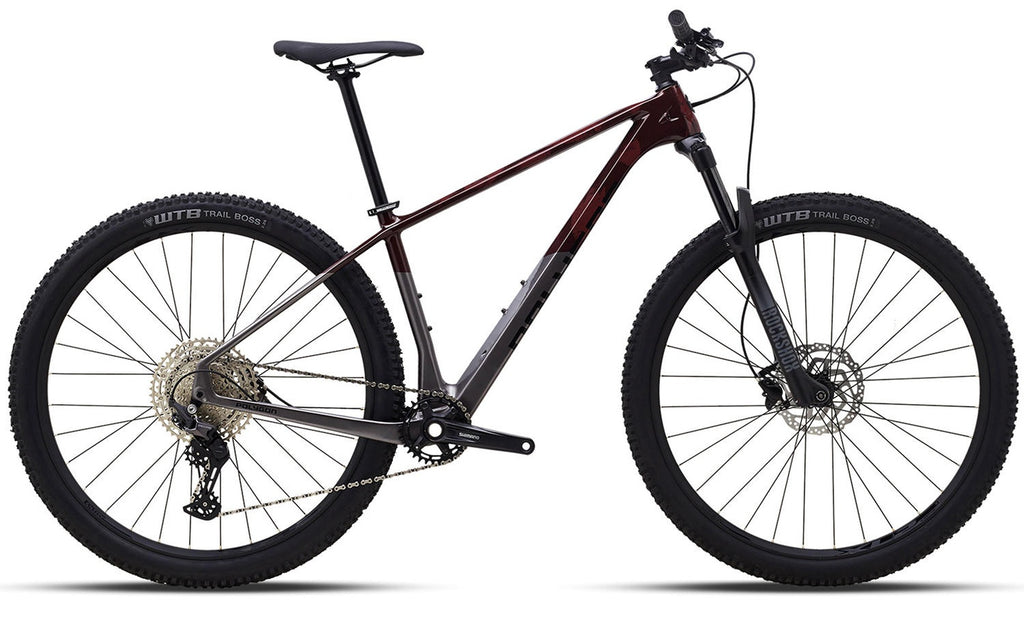

Polygon Syncline C3 29r (Brown)
In stock
Polygon
SEIZE THE JOURNEY
AN ADRENALINE MACHINE TO RIDE ON MORE TRAILS
Designed as a top performing XC trail machine with modern geometry. Featuring an ultra light and stiff carbon frame designed around 27.5” and 29″ wheels, this bike will keep you rolling on cross country to technical tracks smoothly with style. This is for you, trail seeker. Whether you are looking for fun off-road riding or cross-country enthusiast striving for podiums, get ready to cross every boundary and seize your own journey.
Specifications
-
Frameset
ACX XC PERFORMANCE
-
Fork
ROCKSHOX RECON SILVER RL, 120mm
-
Shifter
SHIMANO DEORE SL-M6100-R 12-SPEED TRIGGER
-
Crank
SHIMANO FC-MT510-1 32T 2-PIECE-CRANK
-
Cassette
12 SPEED 11-51T
-
Rear Derailleur
SHIMANO DEORE RD-M6100-SGS DIRECT ATTACH
-
BB
SHIMANO BB-MT500-PA
-
Chain
KMC NEW X-12
-
Pedal
ALLOY CAGE PEDAL W/ REFLECTOR
-
Saddle
ENTITY VOID SADDLE
-
Seatpost
ENTITY XPERT, 27.2x350mm
-
Handlebar
ENTITY XPERT, W: 740mm, BB: 31.8mm, R/D: 12mm, B: 9degree
-
Handlestem
INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40
-
Headset
INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40
-
Wheel Set
ALLOY DOUBLE WALL
-
Wheel Size
27.5 / 29
-
Tire
WTB TRAIL BOSS TIRE, 27.5x2.25 / 29x2.25
-
Rim
584-30 / 622-30 32H FOR TYRE 584 / 622-54/76 TUBELESS READY
-
Hub
F: SHIMANO HB-MT400-B 15x110mm 32H CENTER LOCK / R: SHIMANO FH-MT510-B 12x142mm 32H CENTER LOCK
-
Brake Lever
SHIMANO BL-MT201
-
Brake Caliper
SHIMANO BR-MT201
-
Rotor
SHIMANO SM-RT10 F:180mm R:160MM CENTERL LOCK
-
Weight
12 kg
-
Color
Brown
-
Country of Origin
Indonesia
Size Chart
| S (27.5”) | M (27.5”) | M (29”) | L (29”) | XL (29”) | |
|---|---|---|---|---|---|
| Height (cm) | 152-165 | 162-175 | 162-175 | 172-185 | 182-195 |
| Seat Tube Length (A) | 380 | 420 | 420 | 460 | 500 |
| Seat Tube Angle (B) | 73 | 73 | 73 | 73 | 73 |
| Effective Seat Tube Angle (C) | 75.3 | 75.3 | 75.3 | 75.3 | 75.3 |
| Head Tube Length (D) | 100 | 120 | 100 | 120 | 140 |
| Head Tube Angle (E) | 67 | 67 | 67 | 67 | 67 |
| Effective Top Tube (F) | 569 | 594.6 | 597.7 | 621 | 649 |
