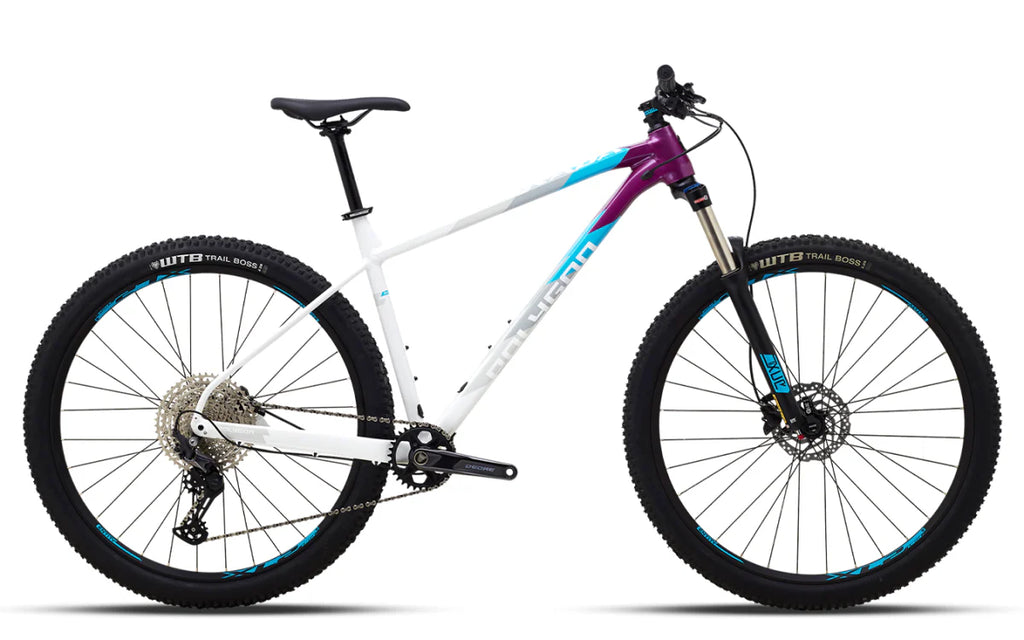

Polygon Xtrada 7 29r(Purple/White)
Out of stock
Polygon
Adventure Starts Here - Created for Chasing Endless Tracks.
"Riding with Xtrada, feels like running as a wolf," they said. As an XC bike should be, Xtrada is born to run the game with you. Impeccably versatile, effortlessly fast, and obsessively comfortable. The Xtrada is a true cross country mountain bike with a geometry built for speed and stability coupled with tough, trail-ready components. It is perfect for hitting the local single track or an all-day mountain adventure.
Features
Easier shift with 1x Groupset
Better acceleration and cornering with short chainstay
Accompanied with suspension fork to smooth out the ride on rough terrains.
Steady handling with Tapered Headtube
Specification
- Frameset: ALX XC Trail
- Fork: SR Suntour XCR32 Air Lor 120mm (27.5" & 29") Travel
- Frame Color: Turqoise Surf - White
- Decal Color: Purple
- Shifter: Shimano Deore SL-M6100-R, 1x12-Speed Trigger
- Crank: Shimano MT-510-1 Boost 32T, 170mm (S, M) / 175mm (L, XL)
- Cassette: 12-Speed 11-51T
- Rear Derailleur: Shimano Deore RD-M6100-SGS Direct Attach
- BB: Shimano 2-Piece Crankset BSA Threaded 73mm
- Chain: KMC X-12
- Pedal: PP Flat Pedal W/ Reflector
- Saddle: Entity Void, Steel ø 7mm
- Seatpost: Entity Xpert Alloy, DXL: 27.2 x 350mm, Seat Clamp: 31.8mm W/ QR
- Handlebar: Entity Xpert Alloy, W: 760mm, Bar Bore: 31.8mm, Rise/drop: 12mm, Bend: 6degree
- Handlestem: Entity Xpert Alloy, EXT: 40mm, Bar Bore: 31.8mm, Rise/drop: 7degree
- Headset: Zero Stack (ZS) Sealed Bearing for Taper Head Tube, ZS 44/28.6 | ZS 56/40
- Wheel Set: Entity XL2 Disc
- Wheel Size: 27.5" / 29"
- Tire: Performance Tire 27.5"X2.25" / 29"X2.25"
- Rim: 584 / 622-30 32H FOR Tyre 584 / 622-54/76 Tubeless Ready
- Brake Lever: Shimano BL-MT201
- Brake Caliper: Shimano MT-201 Hydraulic Disc Brakes
- Rotor: Shimano SM-RT10 160mm Center-Lock
Geometry & Size
| S (27.5″) | M (27.5″) | L (27.5″) | M (29″) | L (29″) | XL (29”) | |
|---|---|---|---|---|---|---|
| Height (cm) | 152-165 | 162-175 | 172-185 | 162-175 | 172-185 | 182-195 |
| Seat Tube Length (A) | 385 | 425 | 460 | 425 | 460 | 500 |
| Seat Tube Angle (B) | 75 | 75 | 75 | 75 | 75 | 75 |
| Effective Seat Tube Angle (C) | 75 | 75 | 75 | 75 | 75 | 75 |
| Head Tube Length (D) | 95 | 100 | 105 | 95 | 100 | 105 |
| Head Tube Angle (E) | 67 | 67 | 67 | 67 | 67 | 67 |
| Effective Top Tube (F) | 569 | 590 | 612 | 598 | 619 | 640 |
| Bb Height (G) | 310 | 310 | 310 | 309 | 309 | 309 |
| Bb Offset (H) | 45 | 45 | 45 | 65 | 65 | 65 |
| Chainstay Length (I) | 425 | 425 | 425 | 435 | 435 | 435 |
| Wheelbase (J) | 1106 | 1128 | 1150 | 1147 | 1169 | 1191 |
| Frame Reach (K) | 410 | 430 | 450 | 430 | 450 | 470 |
| Frame Stack (L) | 593.8 | 599.3 | 603 | 629.3 | 633.2 | 637.8 |
| Standover Height (M) | 663 | 697 | 726 | 693 | 715 | 751 |
