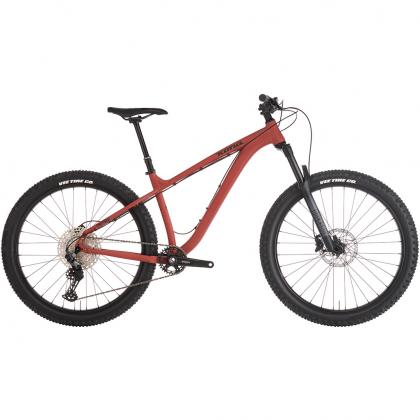

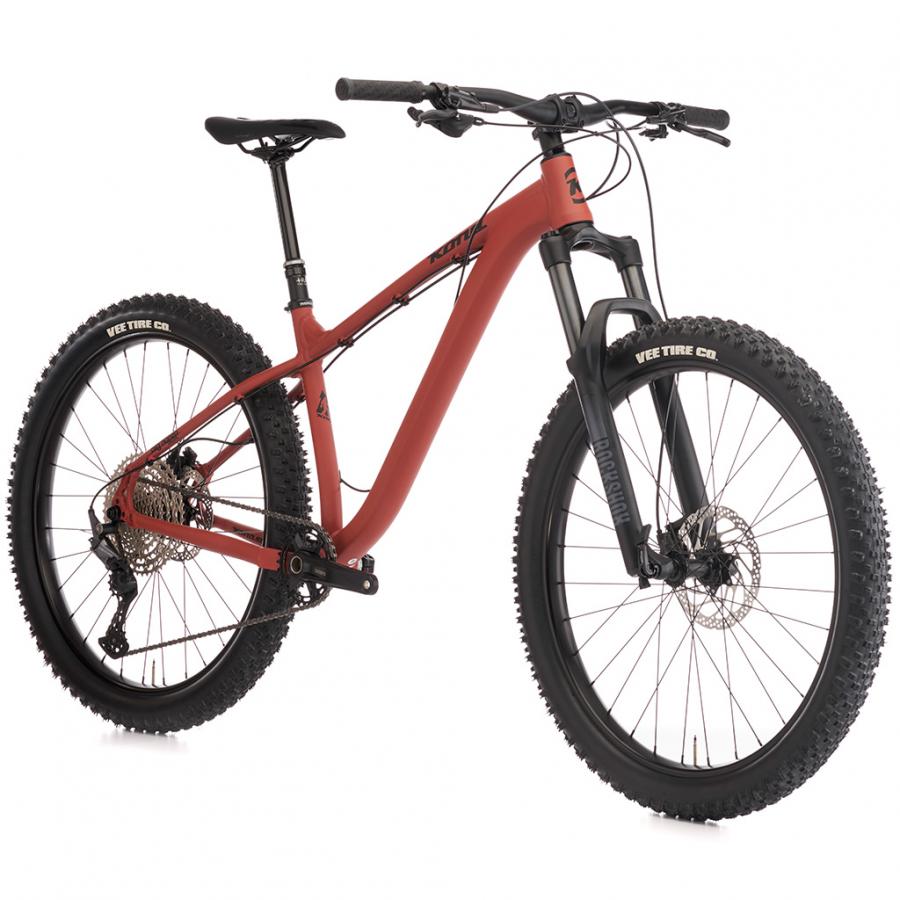

Kona Big Honzo DL 27.5 MTB Bike (Red)
In stock
Kona
A 27.5+ WHEELED VERSION OF OUR CLASSIC HONZO HARDTAILS
Returning to the hardtail lineup is the beloved Big Honzo. Its classic lines and low stand over have made it a favorite for all types of riders. This year we have two Big Honzos that hit the mark for something different. 130mm of front travel, 27.5+ tires and the ability to switch to 29” wheels, modern geo, and just the right parts keep these bikes affordable options for everyone.
The Big Honzo DL is exactly what the name implies. It’s a Honzo with bigger tires and a nice build kit featuring hydraulic disc brakes and 130mm of suspension. You’ll get a little extra squish thanks to the 2.8” tires that absorb bumps with ease. Comfortable geometry and an adjustable travel dropper post ensure you’re always at just the right position on your bike whether you’re climbing that big mountain or descending your favorite flow trail!
Specifications:
| Frame Material | Kona 6061 Aluminum Butted |
| Sizes | S, M, L, XL |
| Rear Shock | N/A |

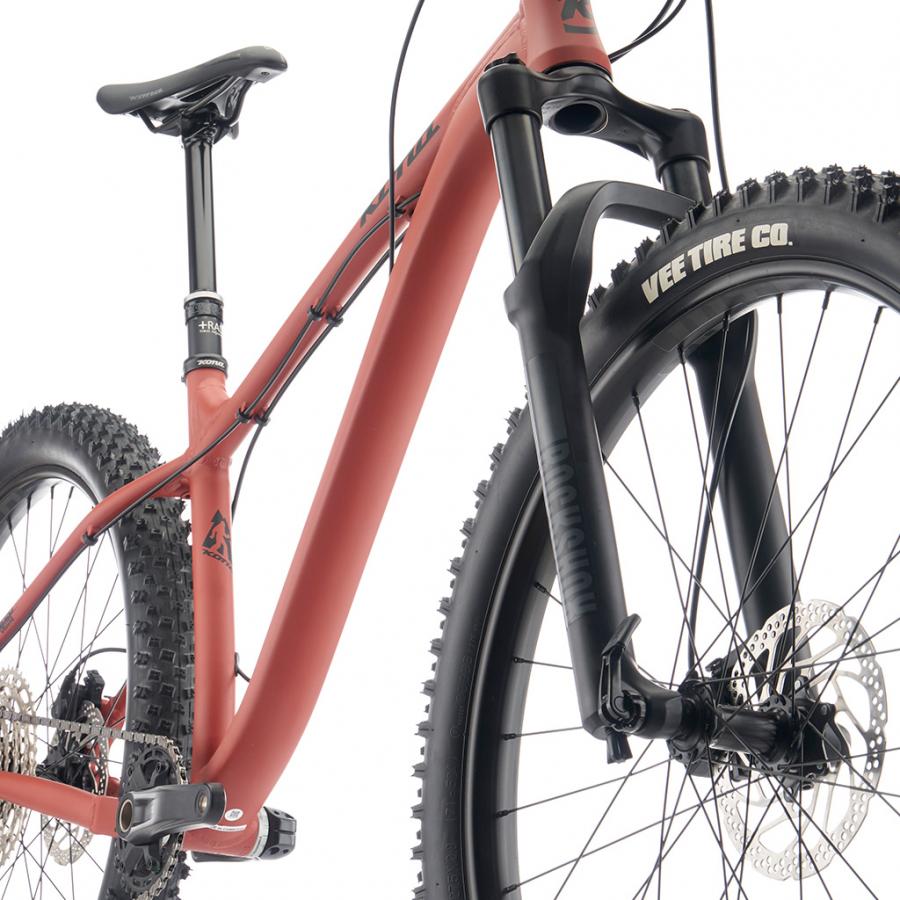

| Fork | RockShox 35 Silver TK Solo Air 130mm Tapered 110mm Spacing |
| Crankarms | Shimano Deore 12-Speed |
| Chainrings | 32T |
| Botttom Bracket | Shimano Deore 73mm |
| Pedals | N/A |
| Chain | Shimano Deore 12-Speed |
| Cassette | Shimano Deore 10-51T 12-Speed |
| Chainguide | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore 12-Speed |
| Shifters | Shimano Deore 12-Speed |

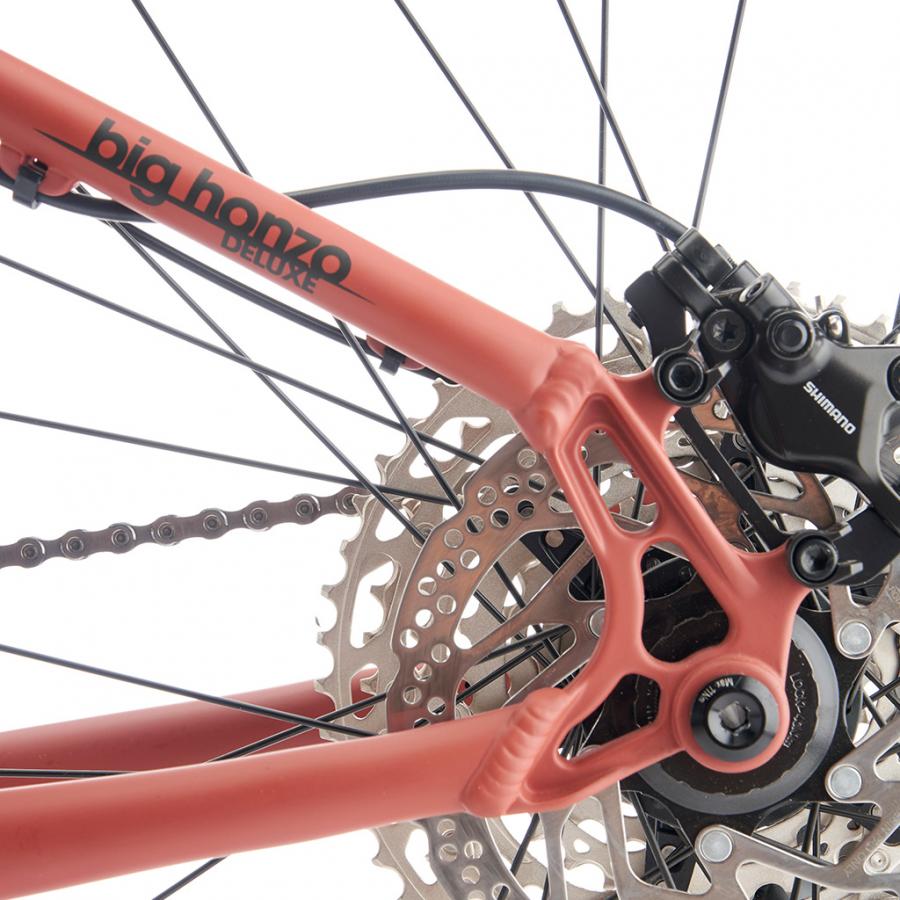

| Brake Calipers | Shimano MT410 Hydraulic |
| Front Brake Rotor | Shimano RT30 180mm (centerlock) |
| Rear Brake Rotor | Shimano RT30 160mm (centerlock) |
| Brake Levers | Shimano MT410 Hydraulic |
| Headset | Feimen HP-H868B |

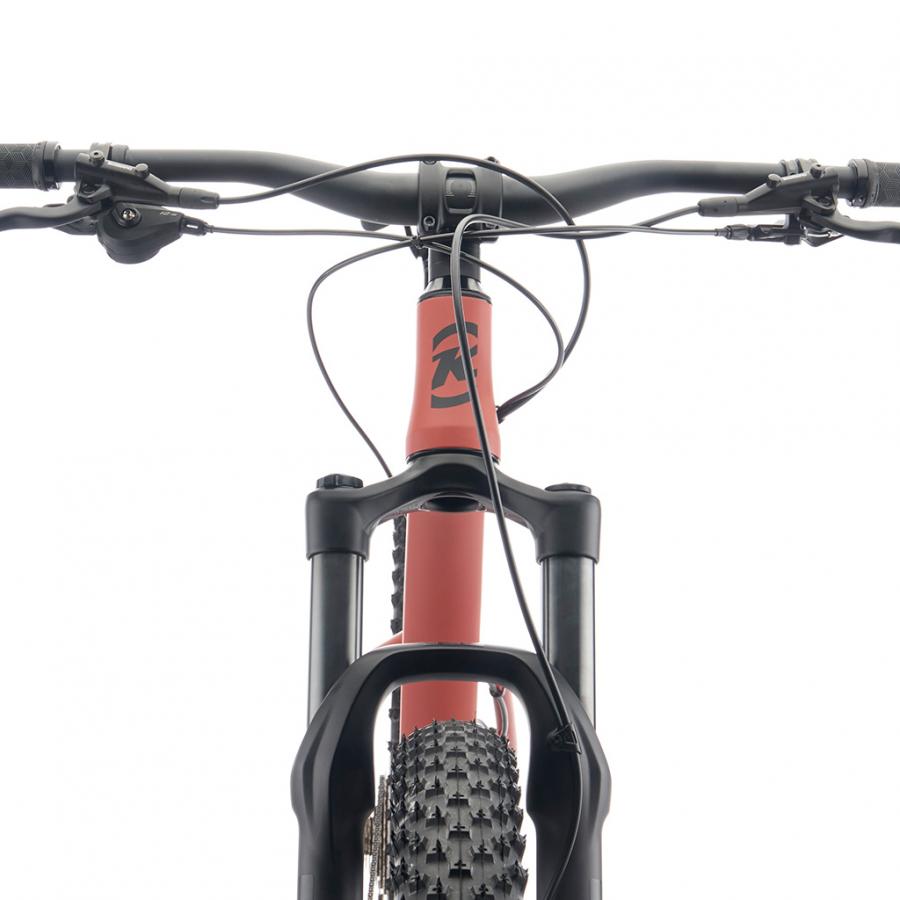

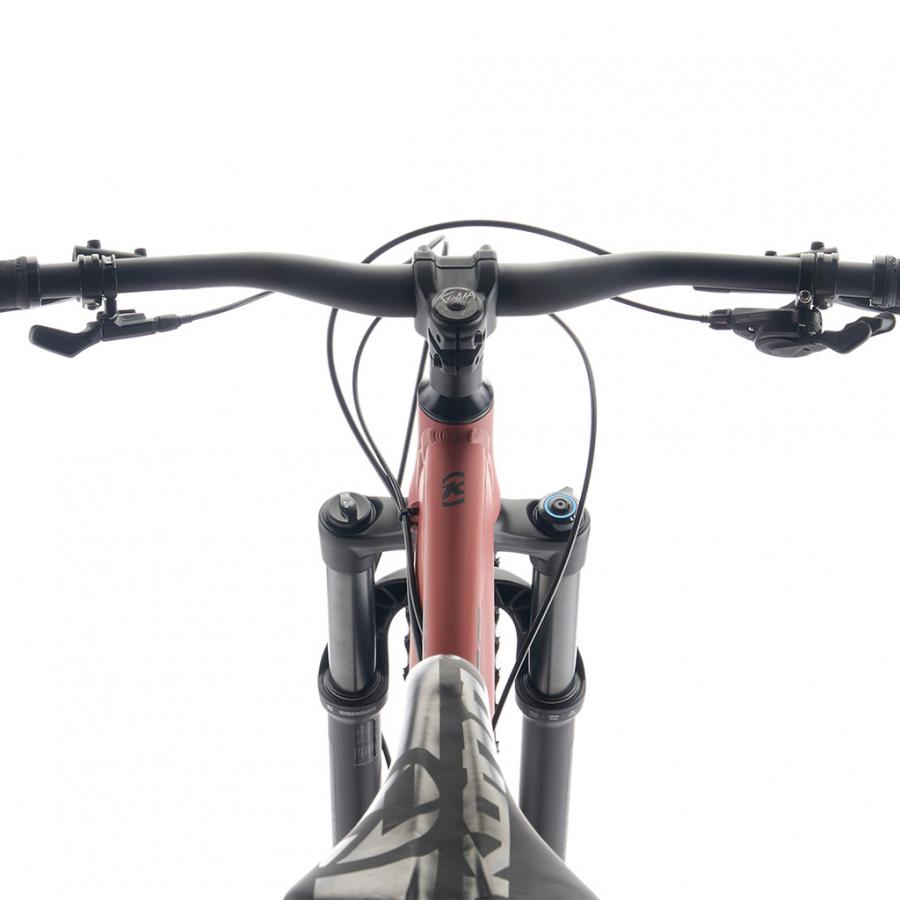

| Handlebar | Kona XC/BC 35 |
| Stem | Kona XC/BC 35 |

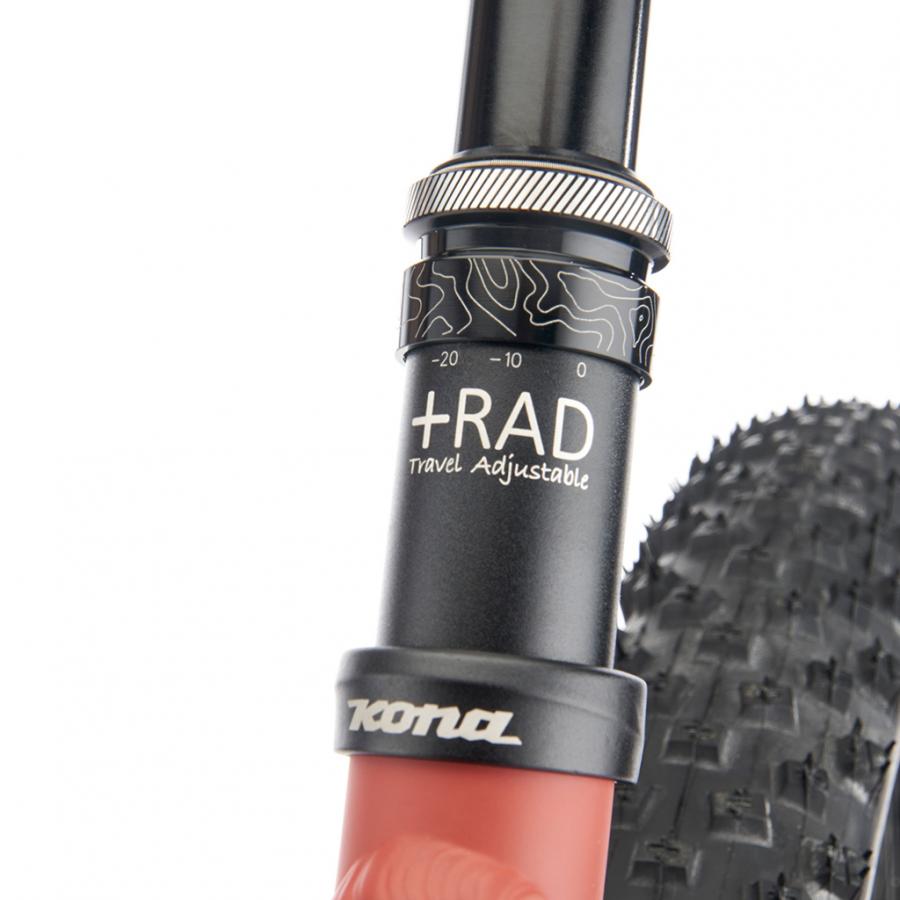

| Seatpost | TranzX Dropper +RAD Internal 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip |
| Saddle | Kona Trail |
| Front Hub | Shimano 110x15mm (centerlock) |
| Rear Hub | Shimano 148x12mm (centerlock) |
| Spokes | Stainless Black 14g |
| Rims | WTB ST i35 TCS 2.0 |
| Front Tyre | Schwalbe Nobby Nic TLE 27.5x2.8" |
| Rear Tyre | Schwalbe Nobby Nic TLE 27.5x2.8" |
| Paint Colour | Matte Bloodstone w/ Charcoal Decals |
| Extras | N/A |
Sizing Information
SIZING + FIT
| Height (Inches) | Height (Metric) | Inseam (Inches) | Inseam (Metric) | Size (Recommended) |
|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | X-Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, X-Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Larrge, X-Large |
Note: All dimensions are in mm unless otherwise mentioned
| Ref | Size | S | M | L | XL |
|---|---|---|---|---|---|
| 1 | ST Length | 370 | 420 | 470 | 530 |
| 2 | TT Length | 592 | 619 | 647 | 684 |
| 3 | Reach | 425 | 450 | 475 | 510 |
| 4 | Stack | 622 | 631 | 640 | 649 |
| 5 | Standover | 723 | 729 | 736 | 758 |
| 6 | HT Angle | 67.5 | 67.5 | 67.5 | 67.5 |
| 7 | HT Length | 95 | 105 | 115 | 125 |
| 8 | ST Angle | 75.0 | 75.0 | 75.0 | 75.0 |
| 9 | CS Length | 430 | 430 | 430 | 430 |
| 10 | BB Drop | 50 | 50 | 50 | 50 |
| 11 | BB Height | 310 | 310 | 310 | 310 |
| 12 | Wheelbase | 1144 | 1173 | 1202 | 1241 |
| 13 | Front Centre | 719 | 747 | 776 | 815 |
| 14 | Fork Length | 541 | 541 | 541 | 541 |
| 15 | Fork Offset | 51 | 51 | 51 | 51 |
