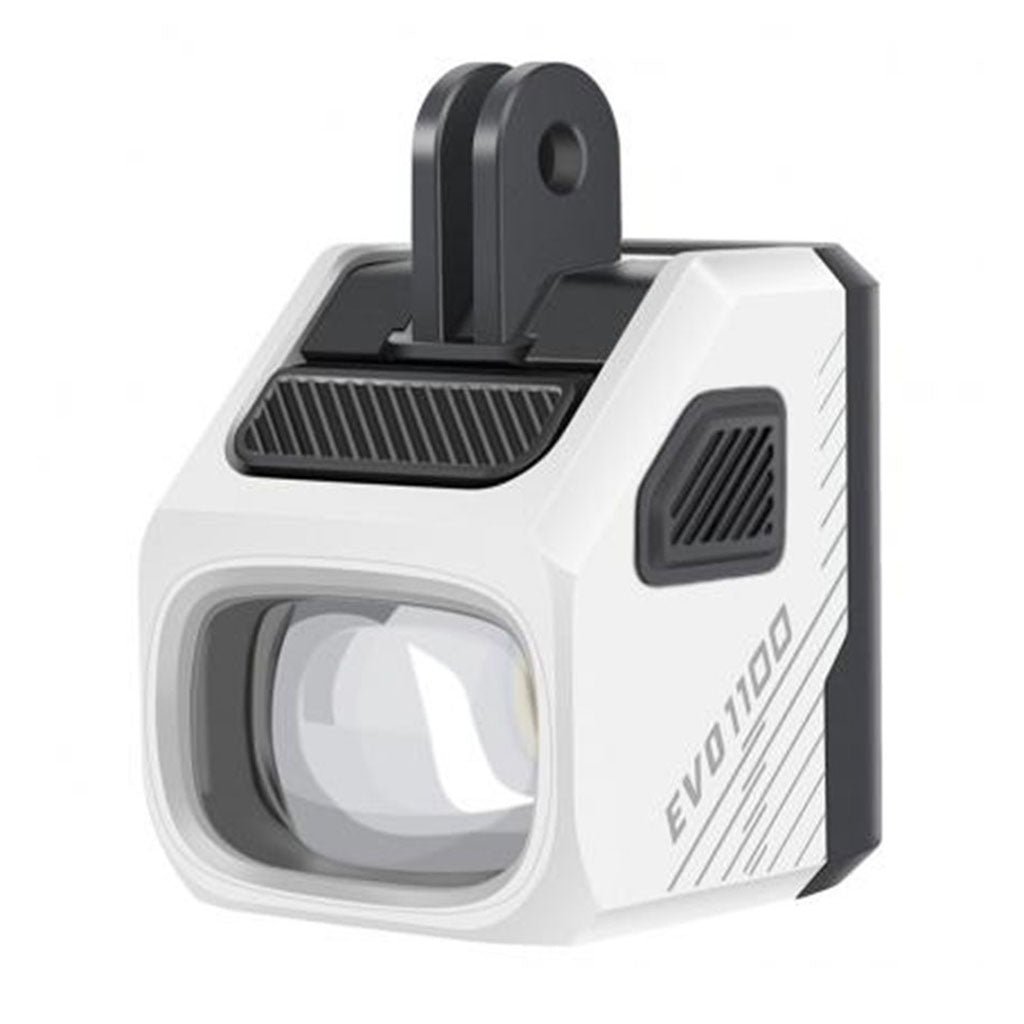

MAGICSHINE FRONT LIGHT EVO 1100-WHITE

MAGICSHINE FRONT LIGHT EVO 1100-WHITE

Introducing the  the latest innovation in Magicshine's EVO lineup. This sleek light delivers a robust 1100 lumens within a remarkably compact and lightweight design. Even more streamlined than its predecessor, the EVO 1700, it precisely caters to the demands of road cyclists and daily commuters. Its peak output guarantees clarity and security in all riding conditions.

Prioritizing rider and road user safety, the EVO 1100 incorporates a meticulously calibrated low beam cutoff. This feature precisely directs illumination onto the road surface, preventing upward and outward light scatter that could dazzle approaching individuals. This thoughtful design ensures exceptional visibility and consideration for everyone on the road.

An ingenious mounting solution optimizes your bike's handlebar area. The featherlight out-front mount positions the light neatly beneath most handlebars, preserving valuable space for a bike computer and maintaining perfect light alignment. Its quick-release mechanism enables swift attachment and detachment, while the adjustable light head offers flexibility for broad or targeted illumination, maximizing your security.

Gain full control by connecting to the Magicshine App, allowing you to personalize lighting preferences, introduce new modes, or fine-tune brightness levels. The included wireless remote control provides immediate access to power, mode changes, and a burst of extreme brightness—all without removing your hands from the handlebars, keeping your attention firmly on the path ahead.

The EVO 1100 is powered by an integrated 1800mAh battery, conveniently rechargeable via USB-C. It offers a dependable runtime of up to 15.5 hours, supplying ample light for prolonged excursions. Encased in a rugged metal shell, this light is built for enduring durability and weather resilience. With an IPX6 waterproof rating, the EVO 1100 reliably performs even in heavy rain, consistently lighting your way.

Experience consistent and balanced illumination with the EVO 1100, perfect for both road cycling and daily commuting. Ride with unwavering confidence, day or night, assured that your route will always be brilliantly lit.

FEATURES

• High-power LED provides a maximum output of 1100 lumens
• Cut-off line beam, glare-free for oncoming road users
• Lightweight out-front mount installs the light underneath most handlebars
• Customize lighting settings for different cycling scenarios through Magicshine App
• Wireless remote control, straight forward to activate maximum output
• Robust aluminum housing for efficient heat management and optimum performance
• Powered by a 1800mAh battery, ensuring long-lasting runtime
• USB-C rechargeable
• Lock function to avoid mis-operation
• Memory function saves the last selected mode
• IPX6 waterproof rating, able to withstand adverse weather
• Warranty: 1 year

OPERATING INSTRUCTION

Switch - A switch on the light unit and a wireless remote control all modes and brightness.

On/Off - Press and hold the button to turn the light on/off. The default output is the last mode when turned off.

Adjust Brightness - When the light is on, click the button to change brightness level. The output brightness will cycle through Low→Medium→ High→Low...(*The flash mode can only be accessed via the wireless remote control).

Lock/Unlock - When the light is off, press and hold the button for 3 seconds to enter lockout mode. To unlock the light, you can press and hold the button again for 3 seconds or charge the light.

Low Power Mode - When the battery power is below 10%, the indicator will flash red, and the light will automatically switch to Low mode and cannot be adjusted. Charge the light as soon as possible.

Battery Indicator - When the light is off, click the power button to display the remaining battery level for 3 seconds.
Green: 100%-21%, Red: 20%-11%, Flashing Red: 10%-1%

WIRELESS REMOTE CONTROL

• Pairing: Turn on the light, press and hold the "○""□" buttons on the remote for about 10 seconds until the indicator alternately flashes blue to enter pairing mode. Then, put the remote close to the light button until the indicators on the remote and light unit are constantly blue for 2 seconds, confirming a successful pairing.
• Before first use, please open the remote's battery compartment, remove the insulating spacer, reinsert the battery, then cover the battery compartment, and the indicator on the remote will flash blue.
• On/Off: Press and hold the "○"/"□" button for 1 second
• Adjust brightness: Click the "○" button
• Flash mode: Double click the "□" button
• Full output mode (1100LM): Click the "□" button to go into full output mode and click the "○"/"□" button to return to the previous mode
• The remote control will enter sleep mode if the light is turned off for more than 48 hours without any operation. Click the light's button to activate it or long-press the light's button to turn it on, and the remote control can work normally

CONNECT WITH APP

• iOS users search for "Magicshine" in the "APP Store," and Android users search for "Magicshine" in "Google Play" to download the App.
• Turn on the Bluetooth of your smartphone and open the APP, click "Add New Devices" and find "M1-B0EVO_1100". Click "Add", then click "Connect the device".

APP SETTINGS

• Click "Add" at the bottom to enter the "Device Settings" interface
• Customize "Always On," "SOS," "Blinking," and "Warning," as well as their corresponding brightness
• Up to 20 customized modes are supported
• *When you delete all customized modes in the App, the light will return to the factory default mode.
