Magicshine RAY 2600B Front Light With Remote

Magicshine RAY 2600B Front Light: Unleash Your Inner Night Warrior

Conquer the darkness with the all-new RAY 2600B, an exceptionally powerful bicycle light designed to transform your night rides. Featuring a robust dual LED setup, this light unleashes an impressive 2600 lumens, providing ample illumination for any adventure, whether you're mountain biking rugged trails, navigating winding roads, or simply commuting through the city. Powered by two 18650 batteries with a substantial 6700mAh high capacity, the RAY 2600B boasts an outstanding power-to-weight ratio. This means you benefit from a compact design that delivers an incredible 15 hours of runtime. Forget battery anxiety and simply immerse yourself in the ride!

Intelligent control is at your fingertips. Once activated through the Magicshine App, the light sensor enables the RAY 2600B to automatically adjust to a brighter beam, ensuring optimal illumination within a fraction of a second upon entering a tunnel. Furthermore, the vibration sensor, also easily activated via the App, intelligently switches the light to sleep mode during your pit stops, perfectly conserving battery power for when you're back in action. For immediate adjustments, the wireless remote control allows you to modify modes or brightness in a split second, or instantly jump to the full output mode with a single push, keeping your focus firmly on the path ahead.

The RAY 2600B offers versatile power management with its USB-C charging and discharging port. Effortlessly top up the light's battery or use it as a convenient power bank to recharge your bike computer, smartphone, or other devices while you're on the go. Engineered for resilience, its IPX6 waterproof rating ensures unwavering performance even in heavy rain or challenging wet conditions. Adding to its comprehensive versatility is the widely compatible Garmin quarter-turn mounting system, allowing for quick and secure attachment to standard and aero handlebars, as well as various helmet and TTA mountable options.

With its dual LED setup, double optics, intuitive App customization, responsive wireless remote control, and convenient USB-C charging and discharging capabilities, the RAY 2600B truly empowers you as a night warrior, igniting your ride with unparalleled illumination every time you set out.

FEATURES

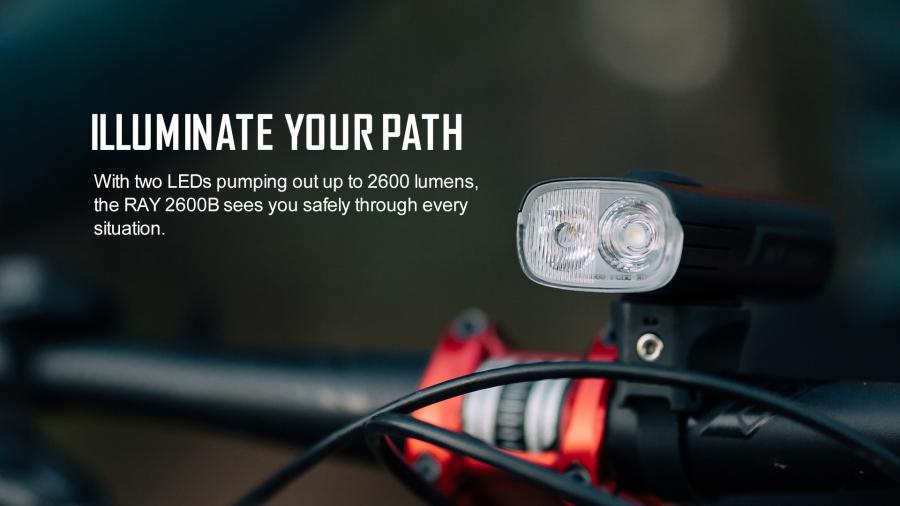

• Two high-power LEDs provide a maximum output of 2600 lumens
• Unique combination of close-range floodlight and far-reaching spotlight beam
• Customize lighting settings for different cycling scenarios through Magicshine App
• Wireless remote control, straight forward to activate maximum output
• Built-in light/vibration sensor, can be turned on/off through the App
• Powered by two 18650 integrated batteries with a capacity of up to 6700mAh
• USB-C fast charging and discharging
• Up-down brightness control with accurate battery display
• Aluminum housing and internal thermal management system ensure efficient heat dissipation and optimum performance
• IPX6 waterproof rating, able to withstand all weather conditions
• Universal Garmin quarter-turn mount allows for quick installation and removal
• Fit 28mm, 31.8mm and 35mm handlebars, including aero options
• Warranty: 1 year

OPERATING INSTRUCTIONS

Switch - A switch on the light unit and a wireless remote control all modes and brightness.

On/Off - Press and hold the button to turn the light on/off. The default output is the last mode when turned off.

Adjust Brightness - When the light is on, click the up/down button to change brightness level.

Change Mode- Double click the button to change between floodlight mode and hybrid mode. (Note: The Day flash and Night flash can only be accessed through the remote control.)

Lock/Unlock - When the light is off, press and hold the button for 3 seconds to enter lockout mode. To unlock the light, you can press and hold the button again for 3 seconds or charge the light.
*In lockout mode, the light will not light up and the indicator flashes red quickly.

Vibration Sensor - The light will turn off automatically after 2 minutes of inactivity and automatically light up with any vibrations. The light will automatically turn off if no vibration is detected within 30 minutes.
*The vibration sensor is off by default, activate it through the App.

Brightness Sensor - During the daytime, the light will automatically turn to Low brightness in floodlight mode. At nighttime, the light will automatically return to the brightness that it's in when turned on.
*The light sensor is off by default, activate it through the App.

Battery Indicator - When the light is off, click the power button to display the remaining battery level for 3 seconds.
Green: 100%-21%, Red: 20%-11%, Flashing Red: 10%-1%

WIRELESS REMOTE CONTROL

• Pairing: Turn on the light, press and hold the "○""□" buttons on the remote for about 10 seconds until the indicator alternately flashes blue to enter pairing mode. Then, put the remote close to the light button until the indicators on the remote and light unit are constantly blue for 2 seconds, confirming a successful pairing.
• On/Off: Press and hold the "○"/"□" button for 1 second
• Adjust brightness: Click the "○" button
• Change mode: Double click the "○" button
• Flash mode: Double click the "□" button
• Full output mode (2600LM): Click the "□" button to go into full output mode and click the "○"/"□" button to return to the previous mode
• The remote control will enter sleep mode if the light is turned off for more than 48 hours without any operation. Click the light's button to activate it or long-press the light's button to turn it on, and the remote control can work normally.

CONNECT WITH APP

• iOS users search for "Magicshine" in the "APP Store," and Android users search for "Magicshine" in "Google Play" to download the App.
• Turn on the Bluetooth of your smartphone and open the APP, click "Add New Devices" and find "M2-B0". Click "Add", then click "Connect the device".

APP SETTINGS

• Click "Add" at the bottom to enter the "Device Settings" interface
• Click "Mode 1" or "Mode 2", you can customize "Always On", "SOS", "Blinking", and "Warning" as well as their corresponding brightness
• Up to 20 customized modes are supported.
• When you delete all customized modes in the App, the light will return to the factory default mode.
