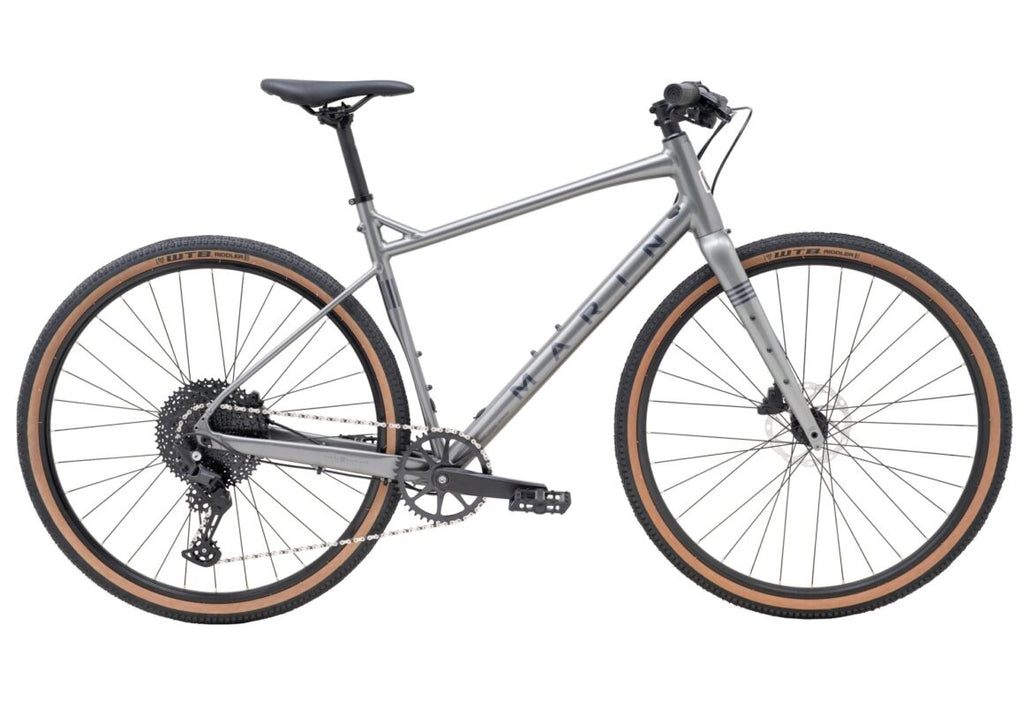

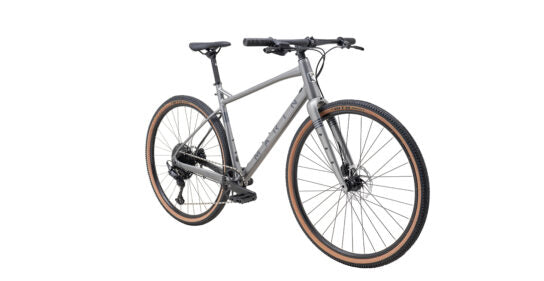

Marin DSX 1 (Grey)

Out of stock
Marin
Size*
Rs. 82,999.00

LONG DISTANCE MIXED SURFACE COMMUTING

GRAVEL RIDING

ADVENTURE ON AND OFF-ROAD RIDING

Hopping up to a higher-spec Series 3 aluminum frame, the Marin DSX 1 has a whole heap of upgrades over the base spec version. Bolt-thru axles add stiffness and a carbon fork drops the weight and adds even more mounting points for bikepacking bags. There’s also an 11-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.

Key upgrades from DSX:

  • Series 3 aluminum frame w/thru axles
  • Full carbon fiber fork
  • Wide-range Shimano Deore 11-speed drivetrain
  • Tektro hydraulic disc brakes

SPECIFICATIONS

  • FRAME

    Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

  • FORK

    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

  • RIM

    Marin Aluminum Double Wall, 21mm Inner, Disc Specific

  • HUB REAR

    Forged Aluminum Alloy, 142x12mm, Disc, 32H

  • HUB FRONT

    Forged Aluminum, 100x12mm, Disc, 32H

  • SPOKES NIPPLES

    14g Black Stainless Steel

  • TIRES

    WTB Riddler, 700Cx45mm

  • DERAILLEUR REAR

    Shimano Deore, RDM5100, 11-Speed

  • DERAILLEUR FRONT

    -

  • SHIFT LEVER

    Shimano Deore, SLM5100, 11-Speed

  • CRANKSET

    Forged Aluminum, 42T Steel Narrow Wide Chainring

  • BOTTOM BRACKET

    Sealed Cartridge

  • CHAIN

    KMC X11

  • CASSETTE

    Shimano, CSM5100, 11-Speed, 11-51T

  • BRAKES FRONT

    Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor

  • BRAKES REAR

    Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor

  • BRAKE LEVERS

    Tektro Hydraulic

  • HANDLEBAR

    Marin MiniRiser

  • STEM

    Marin 3D Forged Alloy

  • GRIPS

    Marin MTB

  • HEADSET

    FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

  • SEATPOST

    Marin Alloy

  • SADDLE

    Marin DSX

  • PEDALS

    Marin Oso OEM Nylon Platform

  • EXTRAS

    Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.

GEOMETRY

DSX 1 geometry diagram
S M L XL
STACK 544.4 572.5 600.6 628.7
REACH 380 405 420 435
HEAD TUBE ANGLE 69.5° 69.5° 69.5° 69.5°
HEAD TUBE LENGTH 120 150 180 210
SEAT TUBE ANGLE 74° 74° 74° 74°
SEAT TUBE LENGTH 430 480 520 558
TOP TUBE EFFECTIVE 536.1 569.2 592.2 615.3
BB HEIGHT 279.5 279.5 279.5 279.5
BB DROP 80 80 80 80
CHAIN STAY 425 425 425 425
WHEEL BASE 1024.42 1060 1085.4 1110.9
STAND OVER HEIGHT 658.76 700.51 730.39 758.5
FORK OFFSET 50 50 50 50
SEATPOST DIAMETER 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH 640 680 680 680
STEM LENGTH 70 70 70 70
CRANK LENGTH 170 175 175 175

All lengths in millimeters

TECHNOLOGY

Marin DSX 2 on a gravel driveway

SERIES 3 FRAME

The DSX FS, 2, and 1 feature a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.

The DSX (base) model utilizes a Series 2 6061 aluminum frame with internal cable routing, and rack and fender eyelets.

Marin DSX 2 rear tire clearance detail

TIRE CLEARANCE

The DSX comes stock with 700x45mm tires, with room for 29x2.1”
knobbies.

Marin DSX 2 rear dropout and flat mount brake mount

DISC BRAKES

The DSX features the latest flat mount disc brake standard
for smooth, controlled stopping in all conditions with minimal
maintenance.

Marin DSX 2 seattube and downtube cable ports

DROPPER POST ROUTING

Dropper posts are quickly becoming standard fare for gravel racers
and riders that spend significant time on rough surfaces, and the
DSX features internal dropper post routing for easy upgrades.
