Sale

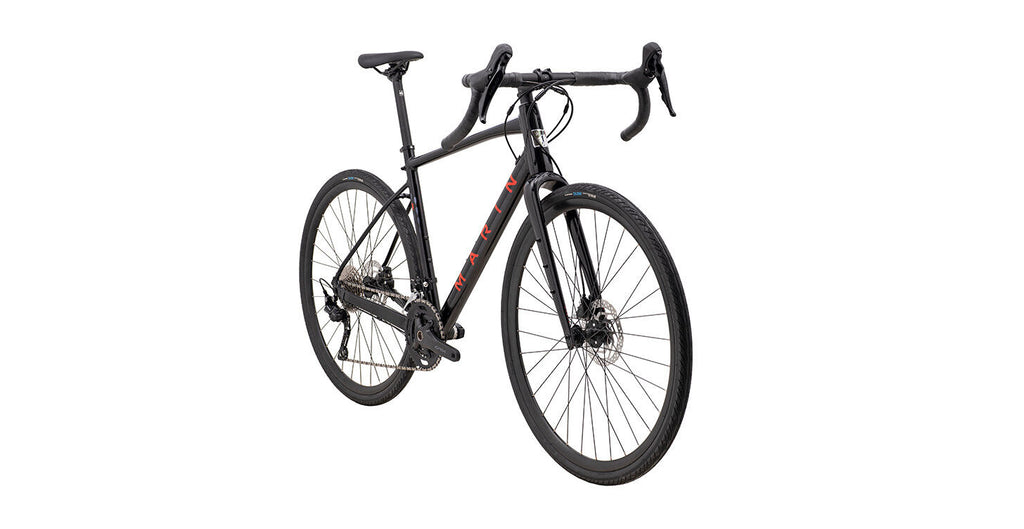

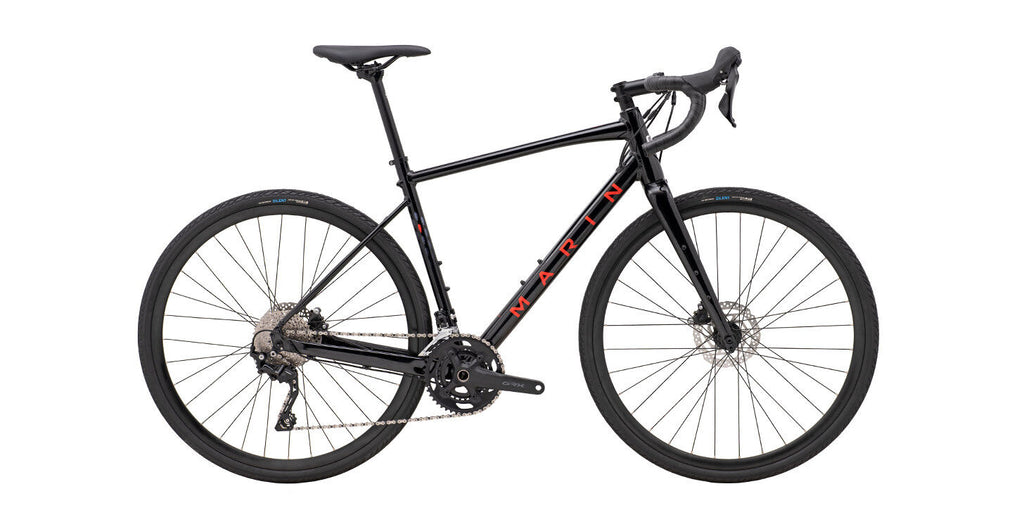

MARIN GESTALT 2 (GLOSS BLACK)
In stock
Marin
ADVENTURE ROAD RIDING
LONG DISTANCE COMMUTING
ENDURANCE AND ALL-WEATHER PAVEMENT
The Marin Gestalt takes you Beyond Road.
Tarmac and trail, rough roads and muddy commutes, bikepacking, touring and adventure. Daily trips and weekend escapes are all within the Gestalt’s wheelhouse, with no stopping when the asphalt turns to dirt.
The Gestalt 2 has superb bang-for-your-buck, with fine components that’ll chew up your favorite routes and heaps of upgrade potential should you need it.
The Gestalt 2 is built around our Series 3 aluminum frame and full carbon fork, matched perfectly with Vee Tire Co tires, Shimano GRX 400 2x10-speed drivetrain, Shimano hydraulic disc brakes and plenty of quality Marin components.
SPECIFICATIONS
-
FRAME
Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
-
FORK
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
-
RIMS
Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible
-
HUB, REAR
Forged Aluminum Alloy, Disc, 32H
-
HUB, FRONT
Forged Aluminum Alloy, Disc, 32H
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
Vee Tire Co., Zilent, 700x35
-
DERAILLEUR, REAR
Shimano GRX, RX400, 10-Speed
-
DERAILLEUR, FRONT
Shimano GRX RX400
-
SHIFT LEVER
Shimano GRX, RX400, 2x10-Speed
-
CRANKSET
Shimano GRX, FC-RX600, 46/30T
-
BOTTOM BRACKET
Shimano
-
CHAIN
KMC X10
-
CASSETTE
Shimano, HG-5010, 11-36T
-
BRAKE, FRONT
Shimano BR-RX400 Hydraulic Disc, 160mm Rotor
-
BRAKE, REAR
Shimano BR-RX400 Hydraulic Disc, 160mm Rotor
-
BRAKE LEVERS
Shimano w/ Integrated Shifters
-
HANDLEBAR
Marin Butted Alloy, Compact 12º Flared Drop
-
STEM
Marin 3D Forged Alloy
-
GRIPS
Marin Perforated Tape
-
HEADSET
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
-
SEATPOST
Marin Alloy, 27.2mm
-
SADDLE
Marin Beyond Road Concept
-
PEDALS
Marin Oso OEM Nylon Platform
-
EXTRAS
Bolt-On Thru-Axles F and R
GEOMETRY
| 50 | 52 | 54 | 56 | 58 | 60 | |
|---|---|---|---|---|---|---|
| STACK | 552 | 568 | 582 | 601 | 620 | 641 |
| REACH | 367 | 372 | 377 | 387 | 402 | 404 |
| HEADTUBE ANGLE | 71° | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
| HEADTUBE LENGTH | 120 | 135 | 150 | 170 | 190 | 210 |
| SEATTUBE ANGLE | 74.5° | 74° | 73.5° | 73.5° | 73.5° | 73° |
| SEATTUBE LENGTH | 460 | 480 | 500 | 520 | 540 | 560 |
| TOPTUBE EFFECTIVE | 520 | 535 | 550 | 565 | 585 | 600 |
| BB HEIGHT | 276 | 276 | 276 | 276 | 276 | 276 |
| BB DROP | 78 | 78 | 78 | 78 | 78 | 78 |
| CHAINSTAY | 432 | 432 | 432 | 432 | 432 | 432 |
| WHEELBASE | 1008 | 1014 | 1024 | 1040 | 1060 | 1070 |
| STANDOVER HEIGHT | 714 | 732 | 755 | 775 | 794 | 814 |
| FORK OFFSET | 50 | 50 | 50 | 50 | 50 | 50 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 420 | 420 | 440 | 440 | 460 | 460 |
| STEM LENGTH | 70 | 70 | 90 | 90 | 110 | 110 |
| CRANK LENGTH | 170 | 170 | 175 | 175 | 175 | 175 |
All lengths in millimeters
TECHNOLOGY
SERIES 2 OR 3 FRAME
The Gestalt features a butted and formed Series 2 6061 aluminum frame with internal routing, disc brakes, and rack and fender eyelets. Series 3 frames add thru-axles and a tapered headtube.
BEYOND ROAD GEOMETRY
Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off pavement use.
DISC BRAKES
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
TIRE CLEARANCE
Model year 2023 and on Gestalt, Gestalt 1, and Gestalt 2 frames and forks have clearance for up to 700Cx45 tires.
