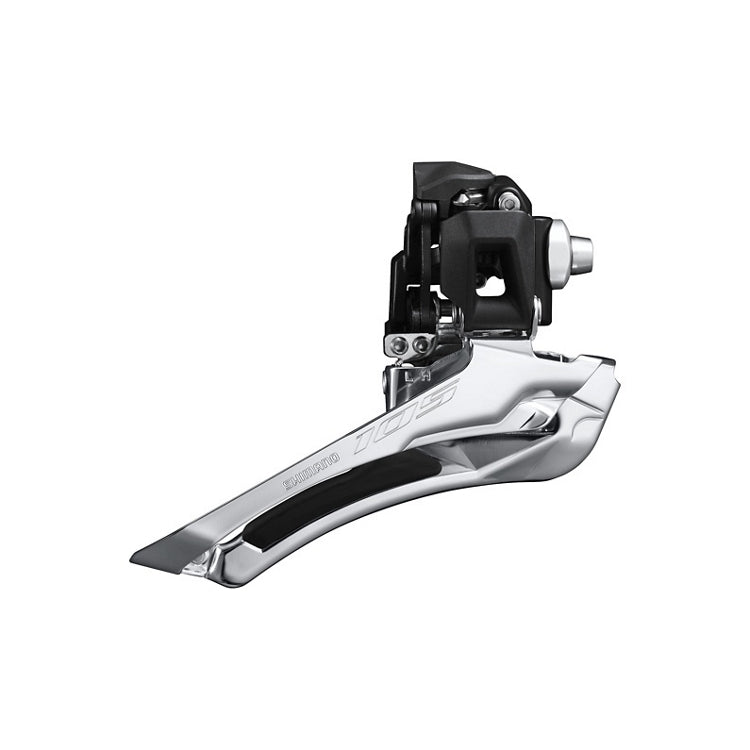

12-speed compatible front derailleur with toggle link construction
The SHIMANO 105 12-speed front derailleur features lighter front shifting, smooth and natural shift action, and SHIMANO toggle link construction with an optimized cage design that is seamlessly compatible with disc brake road bikes.
FEATURES
- Lighter front shifting operation
- Smooth and natural shift action
- Toggle link construction
- Precise and easy front derailleur adjustment
- Routing options include bare shift cable and integrated cable housing stop
- Integrated cable tension adjustment
PRODUCT SPECIFICATIONS
| MODEL NO | FD-R7100-F |
|---|---|
| SERIES | SHIMANO 105 R7100 MECHANICAL Series |
| Color | Series color |
| Average weight | 96 |
| Front speeds | 2 |
|---|---|
| Rear speeds | 12 |
| Compatible chain | HG 12-speed |
| Action|Down swing | ✔ |
| Mount|Brazed-on | ✔ |
| Cable adjust | ✔ |
| Chain line (mm) | 44.5 |
| Chainstay angle (deg.) | 61-66 |
| Top gear teeth | 50-52T |
| Total capacity | 16T |
| Link bushings | 7 |
