COMFORTABLE TRANSPORT
CASUAL COMMUTER
BIKE PATH SUNDAY DRIVER

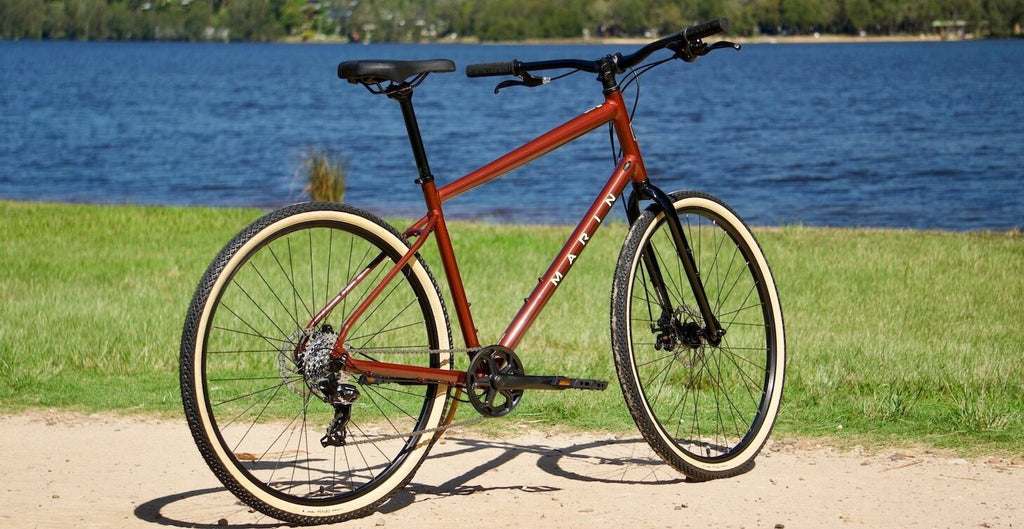

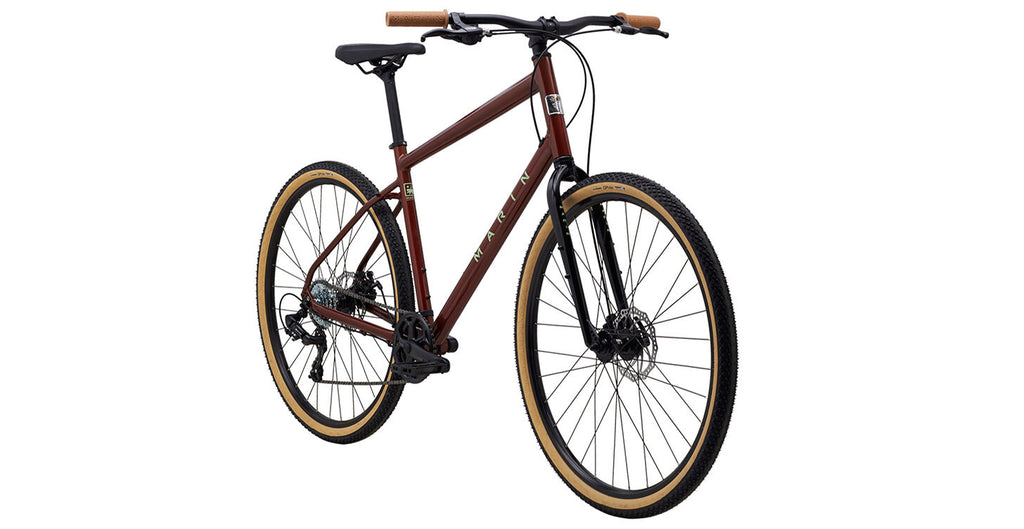

The Kentfield is a retro-modern, stylish, yet affordable bike that can do it all, the new Kentfield is ready to take you to school, the bike path, or through the back alleys to B-line to a coffee date.
SPECIFICATIONS
-
FRAME
Series 1 City + Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts
-
FORK
Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
-
RIMS
Marin Aluminum Double Wall, Disc Specific
-
HUB, REAR
Forged Aluminum Alloy, 32H
-
HUB, FRONT
Forged Aluminum Alloy, 32H
-
SPOKE, NIPPLES
14g Stainless Steel
-
TIRES
Vee Tire, GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready
-
DERAILLEUR, REAR
Shimano Tourney 7-Speed
-
DERAILLEUR, FRONT
-
-
SHIFT LEVER
Shimano Altus 7-Speed RapidFire
-
CRANKSET
Forged Alloy Crank, Steel 38T Chainring, Ring Guard
-
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
-
CHAIN
KMC Z-8.3
-
CASSETTE
SunRace 7-Speed, 11-34T
-
BRAKE, FRONT
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
-
BRAKE, REAR
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
-
BRAKE LEVERS
Aluminum Lever
-
HANDLEBAR
Marin Alloy, 30mm Rise, 12˚ Backsweep
-
STEM
Marin Aluminum, 31.8mm Clamp
-
GRIPS
Marin Adventure
-
HEADSET
FSA 888 Threadless
-
SEATPOST
Marin Alloy, 27.2mm
-
SADDLE
Marin Adventure Plush
-
PEDALS
Commute Platform
GEOMETRY
S | M | L | XL | |
---|---|---|---|---|
STACK | 633.6 | 648.4 | 666.5 | 685.3 |
REACH | 380 | 400 | 415 | 430 |
HEADTUBE ANGLE | 70° | 70° | 70° | 70° |
HEADTUBE LENGTH | 190 | 205 | 225 | 245 |
SEATTUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
SEATTUBE LENGTH | 422 | 462 | 495 | 528 |
TOPTUBE EFFECTIVE | 567.7 | 591.9 | 612.4 | 633 |
BB HEIGHT | 294.5 | 294.5 | 294.5 | 294.5 |
BB DROP | 70 | 70 | 70 | 70 |
CHAINSTAY | 450 | 450 | 450 | 450 |
WHEELBASE | 1082.9 | 1108 | 1130 | 1151.7 |
STANDOVER HEIGHT | 718.86 | 754.41 | 784.94 | 815.14 |
FORK OFFSET | 50 | 50 | 50 | 50 |
SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 |
HANDLEBAR WIDTH | 680 | 740 | 740 | 740 |
STEM LENGTH | 45 | 45 | 45 | 45 |
CRANK LENGTH | 170 | 170 | 175 | 175 |
All lengths in millimeters
TECHNOLOGY
CRMO BMX INSPIRED FORK
The stylish CrMo BMX style fork has straight blades, disc mounts, and BMX inspired dropouts.
HYBRID GEOMETRY
The Kentfield features upright seated hybrid geometry that mixes the upright position of a mountain bike with the efficiency of a pavement bike.
WIDE-RANGE GEARING
Wide-range, 1x gearing is simple to use and offers as large if not larger of a gear range than multi-chainring bikes of the past.
