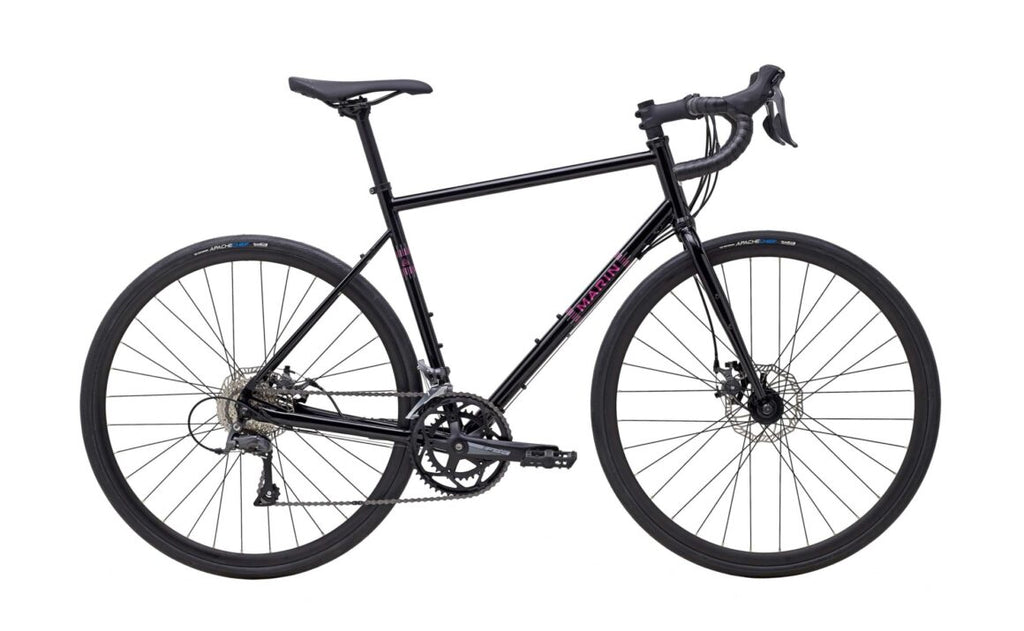

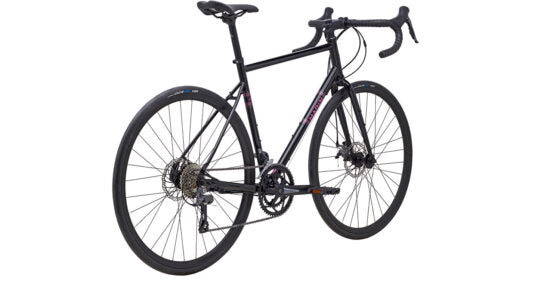

The most affordable model in the family, the base-spec Marin Nicasio is built around a smooth-riding and stylish Series 1 double-butted CrMo frame and fork and zippy 700C wheels, with room for up to 35mm tires. We’ve specced a 2x8-speed Shimano Claris drivetrain, Vee Tire rubber, powerful mechanical discs and plenty of Marin components.
TECHNOLOGY
![Nicasio+, loaded for bikepacking](https://s3.us-east-1.amazonaws.com/craft-marinbikes/images/2020/bikes/technology/_technology320X254/21_Nicasio_Tech_1.jpg)
BEYOND ROAD GEOMETRY
Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off pavement use.
![Nicasio 1 dropout and disc brake mount](https://s3.us-east-1.amazonaws.com/craft-marinbikes/images/2020/bikes/technology/_technology320X254/22-nicasio-detail-5.jpg)
DISC BRAKES
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
![Rear tire and frame image](https://s3.us-east-1.amazonaws.com/craft-marinbikes/images/2020/bikes/technology/_technology320X254/21_Nicasio_Tech_4.jpg)
TIRE CLEARANCE
The Nicasio frame and fork has clearance for up to 700C x 35mm or 650B x 47mm tires.SPECIFICATIONS
-
FRAME
Series 1 Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount -
FORK
CrMo, Fender and Rack Eyelets, IS Disc Mount -
RIMS
Marin Aluminum Double Wall, 19mm Inner, Disc Specific -
HUB, REAR
Forged Aluminum Alloy, Disc, 32H -
HUB, FRONT
Forged Aluminum Alloy, Disc, 32H -
SPOKE, NIPPLES
14g Black Stainless Steel -
TIRES
Vee Tire, Road Chief, 700Cx30, Wire Bead -
DERAILLEUR, REAR
Shimano Claris 8-Speed -
DERAILLEUR, FRONT
Shimano Claris -
SHIFT LEVER
Shimano Claris 2x8-Speed -
CRANKSET
FSA Tempo Compact, 50/34T -
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper -
CHAIN
KMC Z8 -
CASSETTE
SunRace 8-Speed, 11-32T -
BRAKE, FRONT
Promax Render R Road Mechanical Disc, 160mm Rotor -
BRAKE, REAR
Promax Render R Road Mechanical Disc, 160mm Rotor -
BRAKE LEVERS
Shimano w/ Integrated Shifters -
HANDLEBAR
Marin Butted Alloy, Compact 12º Flared Drop -
STEM
Marin 3D Forged Alloy -
GRIPS
Marin Comfort Tape -
HEADSET
FSA No.8D, Sealed Cartridge Bearings
-
SEATPOST
Marin Alloy, 27.2mm -
SADDLE
Marin Beyond Road Concept -
PEDALS
Commute Platform
GEOMETRY
![Nicasio geometry diagram](https://s3.us-east-1.amazonaws.com/craft-marinbikes/images/2020/bikes/geometry/_bikeGeometry320Wide/21_MRN_GEO_ALL_PAVEMENT_STANDARD_1416px.jpg)
47 | 50 | 52 | 54 | 56 | 58 | 60 | |
---|---|---|---|---|---|---|---|
STACK | 534.57 | 541.26 | 555.4 | 574.52 | 590.64 | 609.72 | 619.25 |
REACH | 349.75 | 359.8 | 360.48 | 378.42 | 384.42 | 398.59 | 404.75 |
HEADTUBE ANGLE | 70° | 70.5° | 70.5° | 72° | 72.5° | 72.5° | 72.5° |
HEADTUBE LENGTH | 125 | 130 | 145 | 155 | 170 | 190 | 200 |
SEATTUBE ANGLE (ACTUAL) | 74.5° | 74° | 73.5° | 73.5° | 73° | 73° | 72.5° |
SEATTUBE LENGTH | 440 | 470 | 490 | 510 | 530 | 550 | 570 |
TOPTUBE (EFFECTIVE) | 498 | 515 | 525 | 545 | 565 | 585 | 600 |
BOTTOM BRACKET HEIGHT | 269 | 269 | 269 | 269 | 269 | 269 | 269 |
BOTTOM BRACKET DROP | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
CHAINSTAY | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
WHEELBASE | 992.55 | 1000.22 | 993.92 | 999.2 | 1008.92 | 1029.1 | 1038.26 |
STANDOVER HEIGHT | 697.12 | 721.09 | 741.53 | 758.79 | 777.05 | 796.2 | 812.46 |
FORK OFFSET | 57 | 57 | 57 | 45 | 45 | 45 | 45 |
SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
HANDLEBAR WIDTH | 400 | 400 | 400 | 420 | 420 | 440 | 440 |
STEM LENGTH | 75 | 75 | 75 | 90 | 90 | 90 | 90 |
CRANK LENGTH | 170 | 170 | 170 | 175 | 175 | 175 | 175 |
