FITNESS RIDING
MIXED SURFACES AND TERRAIN
TOWN AND COUNTRY COMMUTING

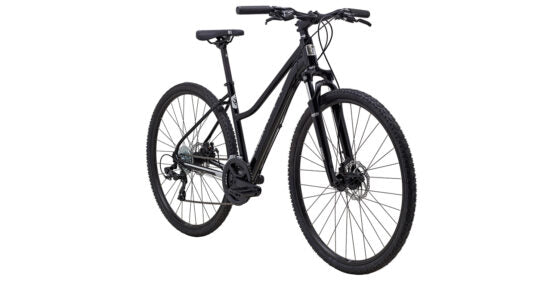

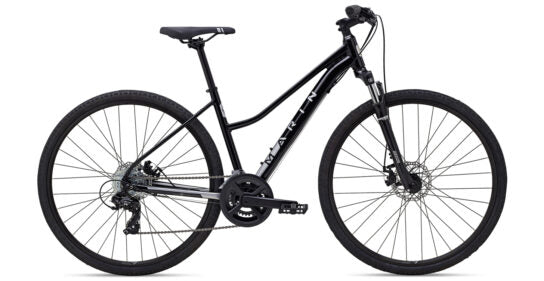

The San Rafael and San Anselmo are for riders looking to explore mixed surfaces and terrain, travel the local rail-trail system, and explore paved paths and dirt doubletrack equally at home. Dual Sport bikes are a bridge between pavement and dirt, for the adventurous fitness and recreational rider.
Key upgrades over the San Anselmo DS1:
- SR Suntour NEX fork w/hydraulic lockout
- Shimano 2x8 drivetrain
- Tektro hydraulic disc brakes
SPECIFICATIONS
-
FRAME
Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Womens Fit Geometry, Step Through Design, Disc Brake
-
FORK
SR Suntour NEX, 63mm Travel, Preload Adjustment
-
RIMS
Marin Aluminum Double Wall
-
HUB, REAR
Forged Aluminum Alloy, 32H
-
HUB, FRONT
Forged Aluminum Alloy, 32H
-
SPOKE, NIPPLES
14g Stainless Steel
-
TIRES
Kenda Kahn, 700Cx40mm
-
DERAILLEUR, REAR
Shimano Tourney, 7-Speed
-
DERAILLEUR, FRONT
Shimano TY710
-
SHIFT LEVER
Shimano EF500 Shifter/Brake Lever Combo, 2x7-Speed
-
CRANKSET
Forged Alloy Crank, 46/30T, Ring Guard
-
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
-
CHAIN
KMC Z-8.3
-
CASSETTE
SunRace 7-Speed, 11-34T
-
BRAKE, FRONT
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
-
BRAKE, REAR
Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
-
BRAKE LEVERS
Shimano w/ Integrated Shifters
-
HANDLEBAR
Marin Alloy Riser
-
STEM
Marin Alloy, 31.8mm Clamp
-
GRIPS
Dual Density Ergonomic
-
HEADSET
FSA No.10-P
-
SEATPOST
Marin Alloy, 27.2mm
-
SADDLE
Marin Womens Fitness Plush
-
PEDALS
Dual Sport Platform
GEOMETRY
| S | M | L | XL | |
|---|---|---|---|---|
| STACK | 588.99 | 598.41 | 607.85 | 621.99 |
| REACH | 382.43 | 377.94 | 384.26 | 400.04 |
| HEADTUBE ANGLE | 70.5° | 70.5° | 70.5° | 70.5° |
| HEADTUBE LENGTH | 100 | 110 | 120 | 135 |
| SEATTUBE ANGLE | 73.5° | 73° | 73° | 73° |
| SEATTUBE LENGTH | 381 | 431.8 | 482.6 | 520.7 |
| TOPTUBE EFFECTIVE | 556.9 | 560.9 | 570.1 | 590.2 |
| BB HEIGHT | 291 | 291 | 291 | 291 |
| BB DROP | 60 | 60 | 60 | 60 |
| CHAINSTAY | 445 | 445 | 445 | 445 |
| WHEELBASE | 1054.19 | 1053.04 | 1062.7 | 1083.48 |
| STANDOVER HEIGHT | 624.2 | 670.4 | 715 | 725 |
| FORK OFFSET | 41 | 41 | 41 | 41 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 660 | 660 | 660 | 660 |
| STEM LENGTH | 60 | 75 | 75 | 75 |
| CRANK LENGTH | 170 | 175 | 175 | 175 |
All lengths in millimeters
