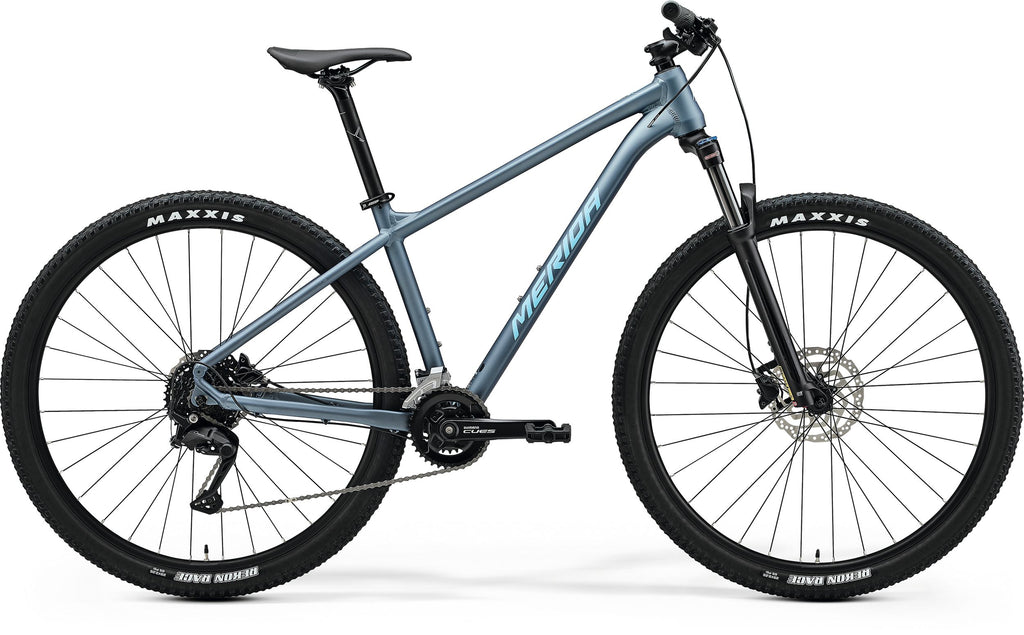

Merida BIG.NINE 100 IV1 (MATT STEEL BLUE)

In stock
MERIDA
The BIG.NINE 100 IV1 is an aluminum 29er hardtail designed for optimal comfort and control, boasting a 100mm air suspension fork. It includes a double chainset for a wide, off-road-ready gear range...
Size*
Rs. 77,990.00

The BIG.NINE 100 IV1 is an aluminum 29er hardtail designed for optimal comfort and control, boasting a 100mm air suspension fork. It includes a double chainset for a wide, off-road-ready gear range and hydraulic disc brakes for confident stopping in any conditions.

Experience fast and comfortable rides with the BIG.NINE 100, thanks to its 100mm air suspension fork and rapid 29er wheels. The double chainring setup offers a versatile gear range, ideal for long off-road excursions and quick dashes through urban environments. The more upright riding position provides enhanced comfort for your lower back and improves visibility.

Mountain biking is a highly diverse and demanding cycling discipline when it comes to gear. While full suspension bikes offer incredible ride characteristics, the classic hardtail remains a quintessential choice. Our 29er wheeled BIG.NINE series is available in carbon and aluminum, providing multiple geometry options. The refined CF carbon and LITE aluminum BIG.NINE frames offer truly modern geometry with improved standover clearance and enhanced handling stability to better navigate today's challenging race courses. We also offer downcountry-ready TR options, which increase fork travel and add aggressive tires and dropper posts. For those seeking a more relaxed ride, the BIG.NINE TFS and SPEED models offer a comfortable, upright riding position. These classic hardtails are the backbone of our collection, embodying the extensive experience and knowledge we've gained in over fifty years of bike production. The BIG.NINE range represents the perfect synergy of modern frame technology, meticulous attention to detail, and the craftsmanship symbolized by "Made in Taiwan."

  • Double butted aluminium frame with 29er wheels
  • Less aggressive and more upright geometry for maximum control and comfort
  • SR Suntour 100 mm travel air suspension fork with lockout
  • Shimano 9-speed drivetrain with double chainring setup
  • Hydraulic disc brakes
  • Internal cable routing

SPECIFICATIONS

  • material: aluminum
  • 29 wheelsize
  • 135x9mm axle standard
  • BSA bottom bracket standard
  • Smooth welding
Frame size S, M, L, XL, XXL
Color:  (MATT STEEL BLUE)
  • Air
  • 100mm suspension travel
  • Lockout
  • 44mm fork offset
Headset:  MERIDA M2345
  • material: aluminium
  • 720mm width
  • 10mm rise
  • material: aluminium
  • 31.8mm diameter
  • 7° stem angle
  • S: 70 mm, M: 80 mm, L: 90 mm, XL: 100 mm, XXL: 110 mm
Grip:  MERIDA COMP EC
Derailleur:  (f) Shimano CUES U4000
Shifters:  Shimano CUES U4000
  • material: aluminium
  • 30.9mm diameter
  • 0mm setback
Seat clamp:  MERIDA COMP QR
  • 25% recycled material
  • V-mount
Pedal:  VP VPE-891
Chain:  KMC xGlide
  • 36-22 teeth
  • 170 mm (S), 175 mm-M up
  • 11-36 teeth
  • 9 speed
Bottom bracket: FSA TH-7420ST Cartridge Bearing
  • 100x9mm width front hub
  • 32 spoke holes
  • Centerlock
  • 135x9mm width rear hub
  • 32 spoke holes
  • Centerlock
  • 25mm inner width
  • material: aluminium
  • tubeless ready
  • 29x2.25"
  • wire
Spokes:  Black stainless
  • weighed at frame size M
  • Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Max. weight: 135 kg

GEOMETRIES
Frame Size S M L XL XXL
Tyre Sizes 29" 29" 29" 29" 29"
ST seat tube [mm] 370 430 470 510 560
TT top tube [mm] 570 590 610 630 650
CS chain stay length [mm] 440 440 440 440 440
HTA head tube angle [°] 70 70 70 70 70
STA seat tube angle [°] 73 73 73 73 73
BD bottom bracket drop [mm] 60 60 60 60 60
HT head tube [mm] 100 115 130 145 160
FL fork length [mm] 506 506 506 506 506
R reach [mm] 382 398 414 429 445
S stack [mm] 614 628 642 656 670
WB wheel base [mm] 1069 1090 1110 1131 1152
SH stand over height [mm] 679 727 763 800 843

Line drawing of a Merida BIG.NINE 100 IV1  bicycle frame with various geometric measurements labeled.
