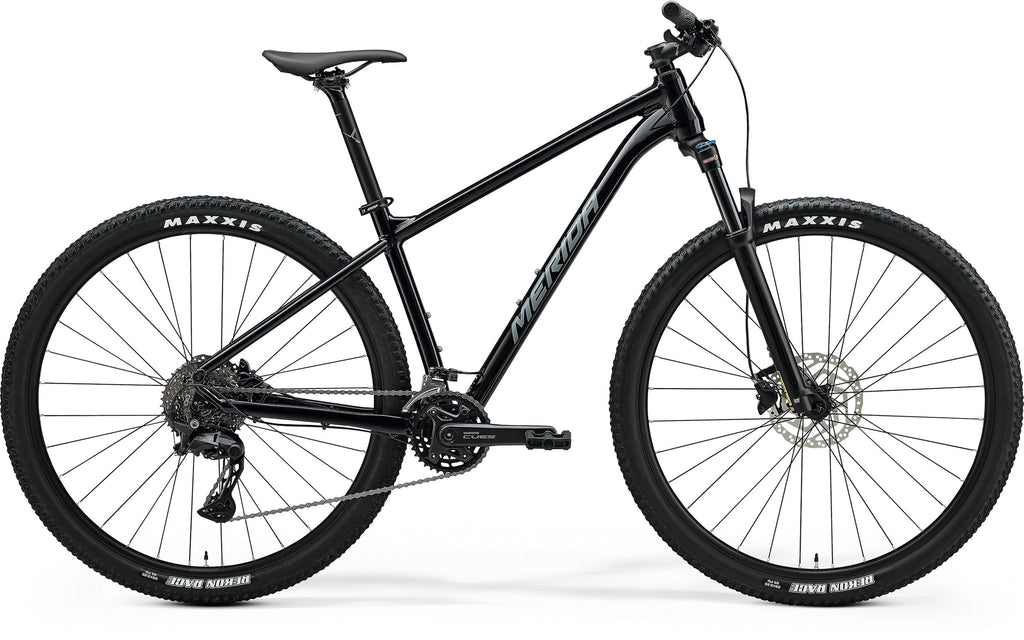

Merida BIG.NINE 300 IV1 (METALLIC BLACK GREY)
BIG.NINE 300 IV1 is a 29er aluminum hardtail built for adventure, featuring a 100mm air suspension fork, a versatile double chainring setup for an extensive off-road gear range, and robust hydraulic disc brakes. This bike is primed for your next trail escapade.
Its 29er wheels excel at rolling over obstacles and maintaining momentum, making them ideal for any mountain biking excursion. We've combined our double-butted aluminum frame with an air suspension fork and a double chainring 10-speed Shimano drivetrain, creating an optimal balance of comfort, control, and gearing versatility. The slightly more upright riding position, compared to our race-oriented models, reduces lower back strain and enhances your view of the path ahead.
Mountain biking stands out as one of cycling's most diverse and demanding disciplines for equipment. While full suspension bikes offer exceptional performance, the traditional hardtail remains a fundamental and pure tool. Our 29er wheel-equipped BIG.NINE range is available in both carbon and aluminum, providing various geometry options. The refined CF carbon and LITE aluminum BIG.NINE frames boast contemporary geometry with improved standover clearance and handling stability, designed to better navigate today's challenging race courses. For enthusiasts, downcountry-ready TR options are available, increasing fork travel and incorporating aggressive tires and dropper posts. The BIG.NINE TFS and SPEED models offer a more relaxed geometry, providing a comfortable, upright riding position. These classic hardtails form the bedrock of our collection, embodying over half a century of accumulated experience and knowledge in bike production. The BIG.NINE range truly represents the synergy of modern frame technology, meticulous attention to detail, and the craftsmanship synonymous with 'Made in Taiwan'.
- Double butted aluminium frame with 29er wheels
- Less aggressive and more upright geometry for maximum control and comfort
- SR Suntour 100 mm travel air suspension fork with lockout
- Shimano CUES 10-speed drivetrain with double chainring setup
- Hydraulic disc brakes
- Internal cable routing
SPECIFICATIONS
- material: aluminum
- 29 wheelsize
- 135x9mm axle standard
- BSA bottom bracket standard
- Air
- 100mm suspension travel
- Lockout
- 44mm fork offset
- 2 piston
- 180mm
- 160mm
- material: aluminium
- 720mm width
- 10mm rise
- material: aluminium
- 31.8mm diameter
- 7° stem angle
- S: 70 mm, M: 80 mm, L: 90 mm, XL: 100 mm, XXL: 110 mm
- SGS
- material: aluminium
- 30.9mm diameter
- 0mm setback
- 25% recycled material
- V-mount
- 36-22 teeth
- 170 mm (S), 175 mm-M up
- 11-39 teeth
- 10 speed
- 100x9mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 32 spoke holes
- Centerlock
- 25mm inner width
- material: aluminium
- tubeless ready
- 29x2.25"
- wire
- 29x2.25"
- wire
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Max. weight: 135 kg
GEOMETRIES
Frame Size | S | M | L | XL | XXL |
Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
ST seat tube [mm] | 370 | 430 | 470 | 510 | 560 |
TT top tube [mm] | 570 | 590 | 610 | 630 | 650 |
CS chain stay length [mm] | 440 | 440 | 440 | 440 | 440 |
HTA head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
STA seat tube angle [°] | 73 | 73 | 73 | 73 | 73 |
BD bottom bracket drop [mm] | 60 | 60 | 60 | 60 | 60 |
HT head tube [mm] | 100 | 115 | 130 | 145 | 160 |
FL fork length [mm] | 506 | 506 | 506 | 506 | 506 |
R reach [mm] | 382 | 398 | 414 | 429 | 445 |
S stack [mm] | 614 | 628 | 642 | 656 | 670 |
WB wheel base [mm] | 1069 | 1090 | 1110 | 1131 | 1152 |
SH stand over height [mm] | 679 | 727 | 763 | 800 | 843 |
