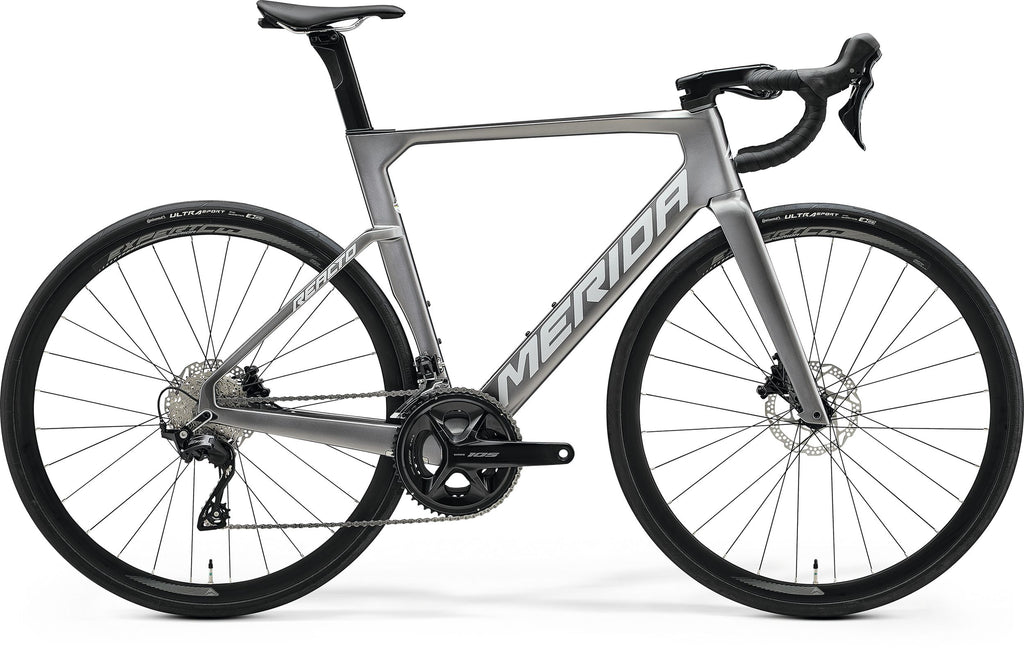

MERIDA REACTO 4000 IV3 (GUNMETAL GREY SILVER)

In stock
MERIDA
MERIDA REACTO 4000 IV3: Accessible Aero Performance The MERIDA REACTO 4000 IV3 stands as the most accessible aero bike in our lineup, yet it's far from an entry-level machine. It features our light...
Rs. 249,990.00

MERIDA REACTO 4000 IV3: Accessible Aero Performance

The MERIDA REACTO 4000 IV3 stands as the most accessible aero bike in our lineup, yet it's far from an entry-level machine. It features our lightweight CF3 frame with race-proven geometry, offering impressive comfort thanks to generous tire clearance (up to 30 mm tires) and a fitted S-FLEX carbon seat post. Simultaneously, the latest super-smooth mechanical 12-speed Shimano 105 groupset ensures perfect shifting and braking control. This is the ideal aero bike for your initial foray into the racing world, as well as for challenging club rides.

Unadulterated aero road speed defines the REACTO. The latest iteration of the REACTO has captivated the cycling press, garnering a long string of test wins, perfect scores, and awards. This acclaim confirms our successful fusion of the race-proven DNA from the previous model with the most recent trends and technologies. Cycling Weekly hails it as "without doubt one of the most complete bikes available on the market," Cyclingnews calls it "an utterly brilliant and faultless machine," and Cycling Plus was "hugely impressed." From serious competitors to enthusiastic road riders, the REACTO is an exceptional bike for many. Its outstanding aerodynamic performance, reduced weight, sharp handling, and super-quick acceleration make it the perfect choice for criterium racers and sprinters. Concurrently, its class-leading comfort allows it to leverage its aerodynamic advantage even on cobblestones or the idyllic, yet pothole-strewn, lanes of your favorite training route.

  • Lightweight CF3 carbon aero frame (approx. 1,150 g - in size M)
  • Shimano 105 12-speed mechanical groupset
  • MERIDA EXPERT SL stem/MERIDA EXPERT CW handlebar combination
  • MERIDA S-FLEX carbon aero post
  • DISC COOLER technology and WIRE PORT cable integration
  • Seat post integrated rear light

SPECIFICATIONS

  • material: carbon
  • 700x30C max. wheelsize
  • 100x12/ 142x12mm axle standard
  • BB86,5 bottom bracket standard
Frame size: 3XS, XXS, XS, S, M, L, XL
Color: GUNMETAL GREY (SILVER)
  • material: carbon
  • 700x30C max. wheelsize
  • Hydraulic disc
Brake: lever Shimano 105
  • VP-MRBHB (OP203 neck)
  • material: aluminium
  • 380mm (3XS-XXS-XS-S)
  • 400mm (M-L-XL)
  • material: aluminium
  • 9° stem angle
  • 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL),
Grip: MERIDA ROAD Expert
Derailleur (f): Shimano 105
Shifters: Shimano 105 disc
  • Aero shape
  • 15mm setback
  • Carbon
Seat clamp: MERIDA REACTO Aero
  • 6% recycled and 23% nature material
  • V-mount
  • incl. MERIDA minitool
Chain: Shimano M6100-12
  • 52-36 teeth
  • 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),
  • 11-34 teeth
  • 12 speed
  • 100x12mm width front hub
  • 28 spoke holes
  • Centerlock
  • 12-142mm width rear hub
  • 28 spoke holes
  • Centerlock
  • 19mm inner width
  • 30mm height
  • material: aluminium
  • Tubeless ready (tubeless tape and valves not included)
  • 700x28C
  • fold
  • including removable lever
  • 6/4mm allen key
Spokes: Double Butted Black stainless
  • weighed at frame size M
  • Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Max. weight: 120 kg

GEOMETRIES
Frame Size 3XS XXS XS S M L XL
Tyre Sizes 28" 28" 28" 28" 28" 28" 28"
ST seat tube [mm] 440 470 500 520 540 560 590
TT top tube [mm] 505 520 536 545 560 575 590
CS chain stay length [mm] 408 408 408 408 408 408 408
HTA head tube angle [°] 70.5 70.5 72 72.5 73.5 73.5 74
STA seat tube angle [°] 75.5 74.5 74 74 73.5 73 73
BD bottom bracket drop [mm] 70 70 70 66 66 66 66
HT head tube [mm] 100 105 112 128 140 155 176
FL fork length [mm] 385 385 385 385 385 385 385
R reach [mm] 373 377 384 390 395 400 409
S stack [mm] 512 517 529 542 557 571 593
WB wheel base [mm] 979 985 983 990 990 999 1010
SH stand over height [mm] 727 746 771 792 810 826 853

Technical diagram of the Merida Reacto 4000 IV3 carbon frame dimensions.
