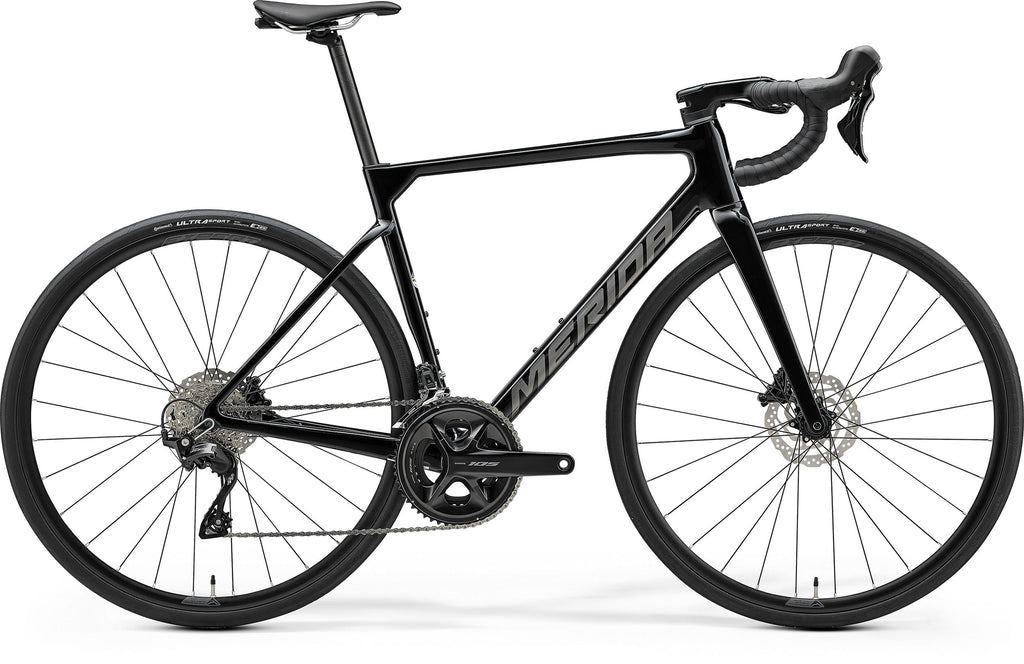

MERIDA SCULTURA 4000 V3 (METALLIC BLACK GUNMETAL GREY)

In stock
MERIDA
MERIDA SCULTURA 4000 V3: Unbeatable Carbon Performance The MERIDA SCULTURA 4000 V3 is built around Shimano's latest, super-smooth 12-speed 105 groupset and features our award-winning SCULTURA CF3 f...
SIZE*
Rs. 224,990.00

MERIDA SCULTURA 4000 V3: Unbeatable Carbon Performance

The MERIDA SCULTURA 4000 V3 is built around Shimano's latest, super-smooth 12-speed 105 groupset and features our award-winning SCULTURA CF3 full carbon frame. This is far from an entry-level bike for our newest SCULTURA frame family. Much like its higher-end siblings, it masterfully blends a long list of air-slicing features and race-proven geometry, adapted directly from our REACTO family, with impressive low weight and class-leading riding comfort. The result is an almost unbeatable package for serious road cyclists.

The fifth generation of our lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. By incorporating selected aero details from our test and award-winning REACTO aero bike, this SCULTURA is truly our most aerodynamic version ever. Yet, it remains steadfastly true to its core focus on lightweight design, agility, and rider comfort; in fact, it elevates these factors to the next level. So much so that Cycling Weekly honored it with the highly sought-after 'Best Value Race Bike of the Year 2024' award. The SCULTURA demonstrates exceptional compliance, providing riders with class-leading riding comfort that helps keep the body fresh for that crucial final sprint or challenging ascent. Available in both CF5 and CF3 carbon frame versions, both sharing geometry with the World Tour-proven REACTO, our classic road bike offers an outstanding combination of comfort with whippet-like acceleration and a class-leading climbing pedigree.

  • Lightweight CF3 carbon frame (approx. 997 g - in size M) with race proven (identical to REACTO) geometry
  • Shimano 105 12-speed groupset
  • MERIDA EXPERT SL II stem
  • MERIDA EXPERT SL handlebar
  • MERIDA EXPERT SL wheelset
  • MERIDA EXPERT CC carbon seat post and DISC COOLER technology

SPECIFICATIONS

  • material: carbon
  • 700x30C max. wheelsize
  • 100x12/ 142x12mm axle standard
  • Pressfit 86,5
Frame size: 3XS, XXS, XS, S, M, L, XL
Color: METALLIC BLACK (GUNMETAL GREY)
  • material: carbon
  • 700x30C max. wheelsize
  • Hydraulic disc
Brake: lever Shimano 105
  • VP-MRBHB (OP-203 neck)
  • material: aluminium
  • 380mm (3XS-XXS-XS)
  • 400mm (S-M-L-XL)
  • material: aluminium
  • 9° stem angle
  • 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL),
Grip: MERIDA ROAD Expert
Derailleur (f): Shimano 105
Shifters: Shimano 105 disc
  • 27.2mm diameter
  • 15mm setback
  • Carbon
Seat clamp: MERIDA EXPERT
  • 6% recycled and 23% nature material
  • V-mount
  • incl. MERIDA minitool
Chain: Shimano M6100-12
  • 52-36 teeth
  • 165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),
  • 11-34 teeth
  • 12 speed
  • 100x12mm width front hub
  • 28 spoke holes
  • Centerlock
  • 12-142mm width rear hub
  • 28 spoke holes
  • Centerlock
  • 17mm inner width
  • 22mm height
  • material: aluminium
  • Tubeless ready (tubeless tape and valves not included)
  • 700x28C
  • fold
  • including removable lever
  • 6/4mm allen key
Spokes: Double Butted Black stainless
  • weighed at frame size M
  • Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Max. weight: 120 kg

GEOMETRIES
Frame Size 3XS XXS XS S M L XL
Tyre Sizes 28" 28" 28" 28" 28" 28" 28"
ST seat tube [mm] 400 435 458 481 501 521 550
TT top tube [mm] 505 520 535 545 560 575 590
CS chain stay length [mm] 408 408 408 408 408 408 408
HTA head tube angle [°] 70.5 70.5 72 72.5 73.5 73.5 74
STA seat tube angle [°] 75.5 74.5 74 74 73.5 73 73
BD bottom bracket drop [mm] 70 70 70 66 66 66 66
HT head tube [mm] 100 105 112 128 140 155 176
FL fork length [mm] 385 385 385 385 385 385 385
R reach [mm] 373 377 383 390 395 400 409
S stack [mm] 512 517 529 542 557 571 593
WB wheel base [mm] 979 985 982 989 990 1000 1010
SH stand over height [mm] 700 721 745 765 782 800 823

Technical diagram of the Merida Scultura 4000 V3 full carbon frame dimensions.
