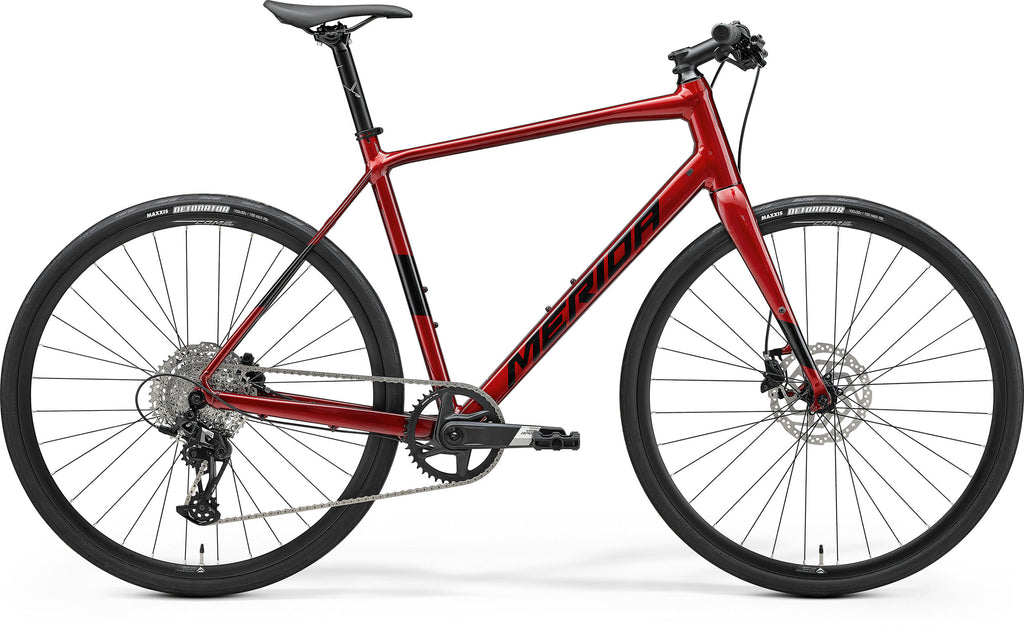

MERIDA SPEEDER 500 III1 (DARK STRAWBERRY BLACK)
MERIDA SPEEDER 500 III1: Unrivaled Speed and Comfort for Urban Riders
Experience the pinnacle of fitness cycling with the MERIDA SPEEDER 500 III1. This bike is not only equipped with high-end components that guarantee outstanding function, durability, and smooth operation, but it also expertly merges the swift, effortless travel of a road bike with a more relaxed and comfortable riding posture. It stands as the quintessential bike for athletic excursions, efficient daily commuting, and even light touring. The inclusion of a carbon fork both shaves off weight and provides excellent vibration dampening. Furthermore, multiple fixing points allow for the convenient attachment of bottle cages, fenders, a kickstand, and a rear rack.
Sharing its DNA with our renowned road bike lineup, the SPEEDER offers a uniquely fast and lightweight ride. Its geometry features an extended reach for superior stability, simultaneously fostering a more upright and comfortable riding posture. This blend of sporty performance and comfort-centric design, complemented by control-enhancing flat handlebars and robust disc brakes, positions the SPEEDER perfectly for speedy commutes or engaging fitness rides. The presence of wider tires and increased tire clearance further bolsters comfort and provides enhanced traction when required. Recognized by Road.cc, the 900 was lauded as an "excellent fast flat-bar road bike with awesome performance," while the 200 was described as "an enjoyable flat-barred flyer for fitness, commuting and everyday riding."
- Lightweight aluminium frame with full carbon fork
- SRAM Apex single ring drivetrain
- Sporty yet comfortable geometry and seating position
- Flat handlebar setup
- Powerful Shimano hydraulic disc brakes
- Multiple fixing points for fenders, kickstand and a rear rack
SPECIFICATIONS
- material: aluminium
- 700x35C max. wheelsize
- 100x9/135x9mm axle standard
- BSA bottom bracket standard
- Tapered
- material: carbon
- 700x35C max. wheelsize
- 2 piston
- 180 mm
- material: aluminium
- 600mm width
- Flat
- material: aluminium
- 31.8mm diameter
- 7° stem angle
- 80 mm (XXS/XS), 90 mm (S), 100 mm (M), 110 mm (L/XL)
- 30.9mm diameter
- 5mm setback
- material: aluminium
- 28% recycled material
- V-mount
- 170 mm-XXS/XS/S/M, 175 mm (L/XL)
- 11-44 teeth
- 12 speed
- 100x9 28 spoke holes, centerlock
- 135x9mm width rear hub
- 28 spoke holes
- centerlock
- 17mm inner width
- 22mm height
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 700x32C
- fold
- 700x32C
- fold
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Frame Size | XXS | XS | S | M | L | XL |
Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
ST seat tube [mm] | 470 | 500 | 520 | 540 | 560 | 590 |
TT top tube [mm] | 555 | 561 | 571 | 583 | 597 | 610 |
CS chain stay length [mm] | 438 | 438 | 438 | 438 | 438 | 438 |
HTA head tube angle [°] | 70 | 70.5 | 71 | 71.5 | 72 | 72 |
STA seat tube angle [°] | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
BD bottom bracket drop [mm] | 65 | 65 | 65 | 65 | 65 | 65 |
HT head tube [mm] | 150 | 160 | 170 | 190 | 215 | 240 |
FL fork length [mm] | 395 | 395 | 395 | 395 | 395 | 395 |
R reach [mm] | 389 | 392 | 398 | 404 | 410 | 416 |
S stack [mm] | 562 | 573 | 585 | 606 | 631 | 655 |
WB wheel base [mm] | 1051 | 1053 | 1058 | 1066 | 1075 | 1088 |
SH stand over height [mm] | 744 | 769 | 787 | 806 | 828 | 855 |
