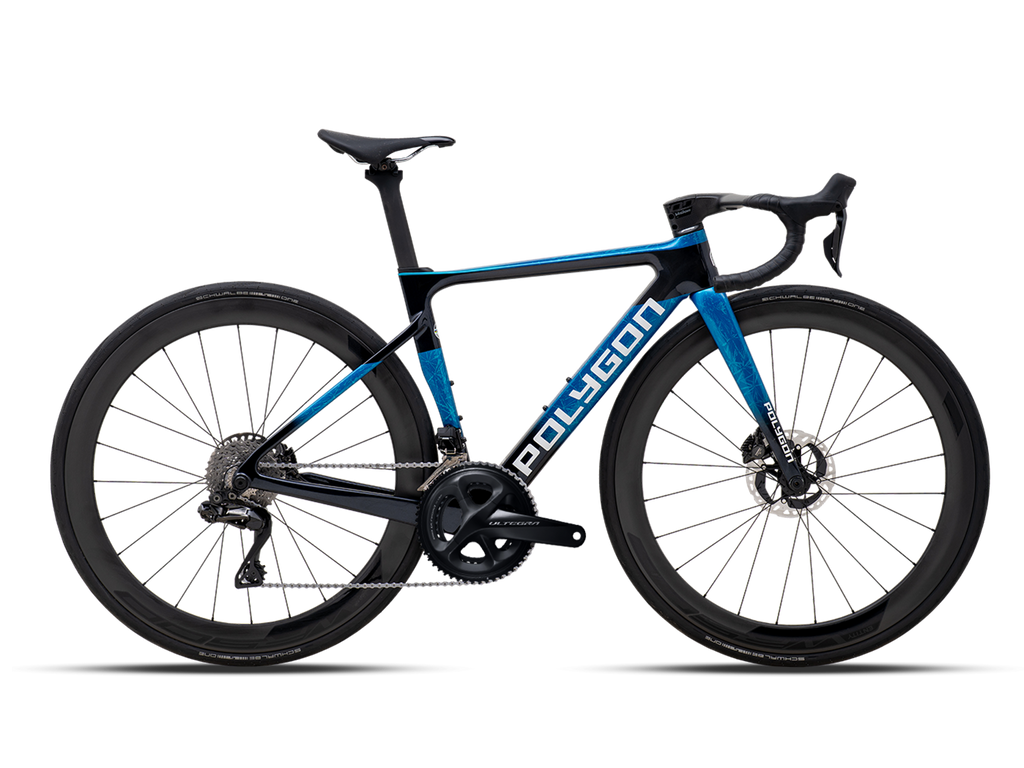

Polygon Helios A8X DI2
In stock
Polygon
DESIGNED TO CUT THROUGH AIR BETTER
In our pursuit of speed, we cyclists have always seen nature as an adversary. From daunting air drag to coarse road surfaces, we sought to minimize interaction wi...
DESIGNED TO CUT THROUGH AIR BETTER
In our pursuit of speed, we cyclists have always seen nature as an adversary. From daunting air drag to coarse road surfaces, we sought to minimize interaction with our surroundings in hopes of achieving optimal efficiency. Helios is here to transform that paradigm because by embracing nature, we can be even faster.
FEATURES
CUTS THROUGH AIR
The best teacher of aerodynamics comes from raindrops: the billions that seeks the most efficient way in cutting through air. With this inspiration, the new shape of Helios is designed to cut through air without leaving behind turbulence, thus achieving an industry-leading; 24% reduction in drag over previous generation designs.
FLIES ON CLIMBS
We went back to the basic philosophy of a bicycle: how do we leverage the rider’s work in the most efficient way possible? To this end, we reinforced the bottom bracket and right chainstay to instantaneously transmit pedaling power to the wheels. In addition, with one of the lightest frames at only 800 grams, it is designed to defy gravity and fly even in the most arduous of climbs.
SYNCHRONIZED TO THE HUMAN BODY
At the end of the day, we designed Helios with its rider in mind. Few tracks are ever completely smooth or straight. The reinforcements, in conjunction with clearance for wider tires that is proven to minimize rolling resistance, enables the rider of this bike to best control, corner, and conquer.
SPECIFICATON
FRAMESET
Frameset: ACX PERFORMANCE UCI APPROVED
Fork: ACX PERFORMANCE UCI APPROVED, TAPER 1-1/8" TO 1-1/2"
Rear Shock: -
Size: XS,S,M,L & XL
Frame Color: JET BLACK
Decal Color: BLACK - WHITE
DRIVETRAIN
Shifter: SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED DCL
Crank: SHIMANO ULTEGRA FC-R8100 52/36T, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL)
Cassette: SHIMANO ULTEGRA CS-R8100-12 11-34T
Rear Derailleur: SHIMANO ULTEGRA Di2 RD-R8150 DIRECT ATTACH
BB: SHIMANO SM-BB92-41B, PRESSFIT BB86
Chain: 12-SPEED CHAIN
Pedal: -
COCKPIT
Saddle: ENTITY FLUX2, CR-MO ø 7mm
Seatpost: CARBON, AERO 35 x 337mm (XS) / 357mm (S, M, L, XL)
Handlebar: VISION METRON 5D ACR INTEGRATED, W: 400mm (XS, S) / 420mm (M, L) / 420mm (XL), BB: INTEGRATED, R/D: 125mm, B/R: 80mm
Handlestem: VISION METRON 5D ACR INTEGRATED, EXT: 100mm (XS, S) / 110mm (M, L) / 120mm (XL), BB: INTEGRATED, R/D: 6degree
Headset: INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40
WHEEL & TIRE
Wheel Set: ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED
Wheel Size: 700C
Tire: SCHWALBE ONE ADDIX TLE 700x28C
Rim: CARBON 622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY
Hub: F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS CENTER LOCK / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CENTER LOCK
Spokes: STAINLESS STRAIGHT PULL BUTTE
BRAKE
Brake Lever: SHIMANO ULTEGRA HYDRAULIC DISC
Brake Caliper: SHIMANO ULTEGRA HYDRAULIC DISC
Rotor: SHIMANO ULTEGRA HYDRAULIC DISC
GEOMETRY & SIZE CHART
| XXS | XS | S | M | L | XL | |
|---|---|---|---|---|---|---|
| Height (cm) | 151-161 | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 |
| Seat Tube Length (A) | 450 | 475 | 500 | 520 | 545 | 570 |
| Seat Tube Angle (B) | 75 | 74.7 | 74.3 | 74 | 73.7 | 73.3 |
| Effective Seat Tube Angle (C) | 75 | 74.7 | 74.3 | 74 | 73.7 | 73.3 |
| Head Tube Length (D) | 100 | 115 | 130 | 145 | 160 | 175 |
| Head Tube Angle (E) | 71.5 | 71.8 | 72 | 72.3 | 72.3 | 72.8 |
| Effective Top Tube (F) | 505.31 | 517.31 | 530.42 | 543.04 | 555.14 | 569.25 |
| Bb Height (G) | 271 | 271 | 271 | 271 | 271 | 271 |
| Bb Offset (H) | 73 | 73 | 73 | 73 | 73 | 73 |
| Chainstay Length (I) | 415 | 415 | 415 | 415 | 415 | 415 |
| Wheelbase (J) | 968.42 | 975.82 | 983.9 | 991.1 | 1000.62 | 1005.8 |
| Frame Reach (K) | 370 | 375 | 380 | 385 | 390 | 395 |
| Frame Stack (L) | 505 | 520.21 | 535.2 | 550.4 | 564.7 | 580.8 |
| Standover Height (M) | 715.04 | 739.4 | 763.21 | 780.8 | 802.52 | 824.28 |
