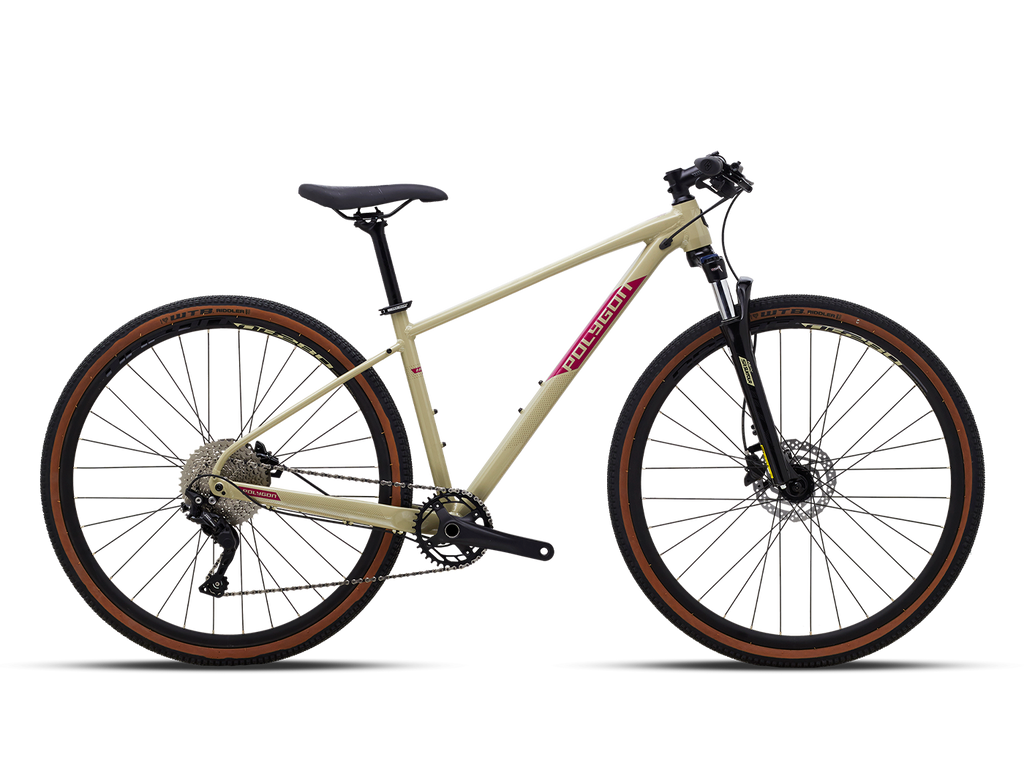

Name: Polygon Heist X5 (CREAM)
Brand: Polygon
SKU: Heist X5CRM43(M)
Price: 63990.00 INR
Availability: InStock

Polygon Heist X5 (CREAM)

Availability In stock

Brand Polygon

M(43)

L(47)

Rs. 63,990.00

Quantity:

I agree with the terms and conditions

Add to Wish List

Description

Specification

Frameset

AL6 URBAN CROSS, 12x142mm O.L.D. 2HRU

Fork

SUNTOUR NVX, PRELOAD ADJUSTER, HYDRAULIC LOCK OUT, STRAIGHT 1-1/8" THREADLESS

Rear Shock

Shifter

SHIMANO DEORE SL-M6000/SL-M4100, 1X10 SPEED TRIGGER

Crank

PROWHEEL CHARM, 36T 2-PIECE-CRANK, MAX CHAINRING: 38T, CRANK ARM: 170mm (S, M) / 175mm (L, XL)

Cassette

SHIMANO CS-HG500, 10-SPEED 11-42T

Rear Derailleur

SHIMANO DEORE RD-M6000/RD-M4120 DIRECT ATTACH

THREADED BB, BSA THREADED 68mm

Chain

KMC X10-1

Pedal

PP CAGE PEDAL W/ REFLECTOR

Saddle

ENTITY SADDLE, STEEL ø 7mm

Seatpost

ENTITY XPERT, DXL: 27.2X350mm, OFFSET: 15mm, SEAT CLAMP: 31.8mm W/ QR

Handlebar

ENTITY XPERT, EXT: 700mm, BAR BORE: 31.8mm, RISE/DROP: 0mm, BEND: 6degree

Handlestem

ENTITY XPERT, EXT: 60mm (400, 431) / 80mm (470, 516), BAR BORE: 31.8mm, RISE/DROP: 7degree

Headset

INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40

Wheel Set

ALLOY DOUBLE WALL

Wheel Size

700

Tire

WTB RIDDLER TIRE 700X45C

Rim

Hub

Spokes

Brake Lever

SHIMANO BR-MT201 HYDRAULIC DISC BRAKE

Brake Caliper

SHIMANO BR-MT201 HYDRAULIC DISC BRAKE

Rotor

SHIMANO SM-RT26 160mm 6-BOLTS

Size Chart

	S	M	L	XL
Height (cm)	155-165	165-175	175-185	185-195
Seat Tube Length (A)	400	431	470	516
Seat Tube Angle (B)	74	74	74	71
Effective Seat Tube Angle (C)	74	74	74	71
Head Tube Length (D)	90	90	100	110
Head Tube Angle (E)	71	71	71	71
Effective Top Tube (F)	563.12	593.12	620.8	648.54
Bb Height (G)	289.5	289.5	289.5	289.5
Bb Offset (H)	70	70	70	70
Chainstay Length (I)	440	440	440	440
Wheelbase (J)	1063.12	1093.12	1121.43	1149.63
Frame Reach (K)	385	415	440	465
Frame Stack (L)	621.18	621.18	630.64	640.1
Standover Height (M)	688.3	708.7	742.5	781.5
