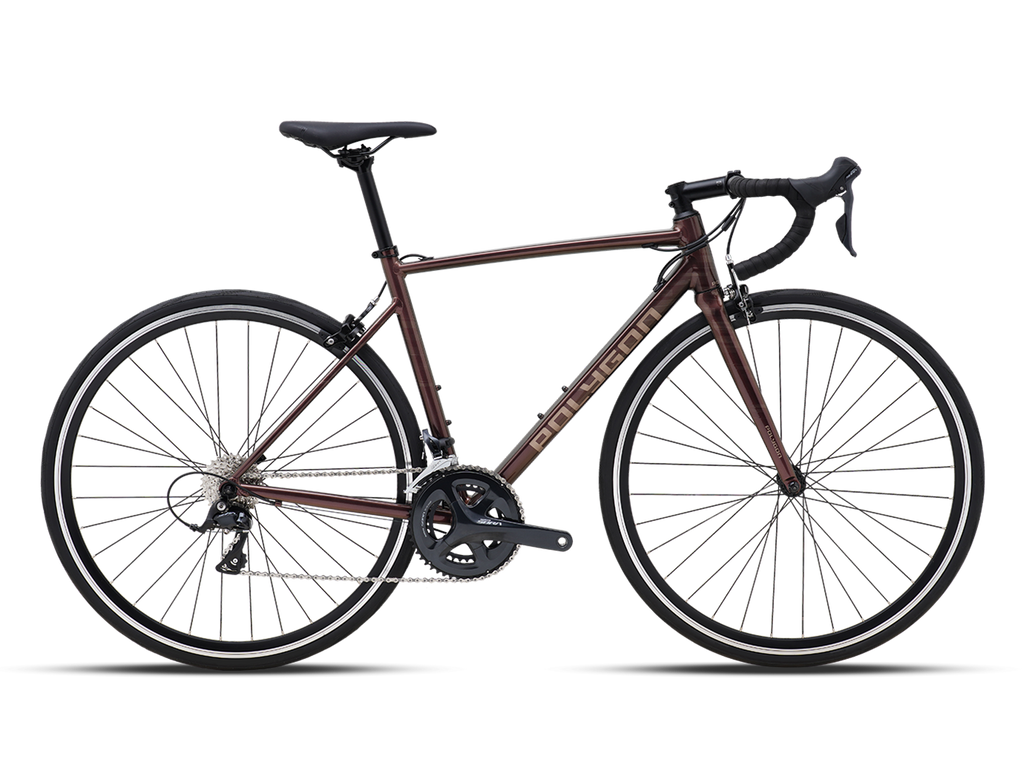

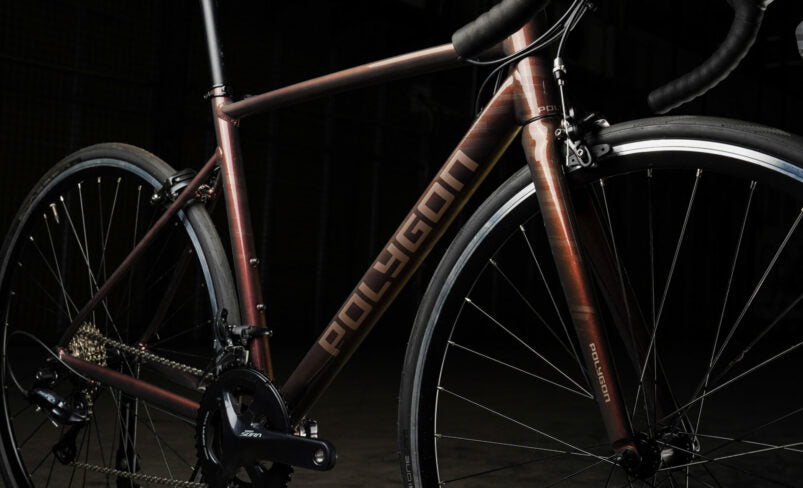

Polygon STRATTOS S3 (Brown)
In stock
Polygon
Features
More comfortable ride with vibration-damping carbon forkMore aerodynamic and sturdy ride with internal cable routing
Specification
Frameset
Frameset
ALX ALL-ROUND
Fork
LIGHT W...
Features
More comfortable ride with vibration-damping carbon fork
More aerodynamic and sturdy ride with internal cable routing
Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 162-170 | 168-176 | 174-181 | 180-187 |
| Seat Tube Length (A) | 470 | 500 | 520 | 550 |
| Seat Tube Angle (B) | 74.5 | 73.5 | 73.5 | 73 |
| Effective Seat Tube Angle (C) | 74.5 | 73.5 | 73.5 | 73 |
| Head Tube Length (D) | 105 | 130 | 155 | 185 |
| Head Tube Angle (E) | 72.5 | 73 | 73 | 73 |
| Effective Top Tube (F) | 525 | 540 | 555 | 570 |
| Bb Height (G) | 272 | 274.5 | 274.5 | 277 |
| Bb Offset (H) | 72.5 | 70 | 70 | 67.5 |
| Chainstay Length (I) | 415 | 415 | 415 | 415 |
| Wheelbase (J) | 977.38 | 984.9 | 995 | 1005.5 |
| Frame Reach (K) | 383.01 | 386.59 | 389.45 | 391.12 |
| Frame Stack (L) | 511.98 | 535 | 558.9 | 585.09 |
| Standover Height (M) | 717.4 | 748.3 | 769.1 | 797.8 |
