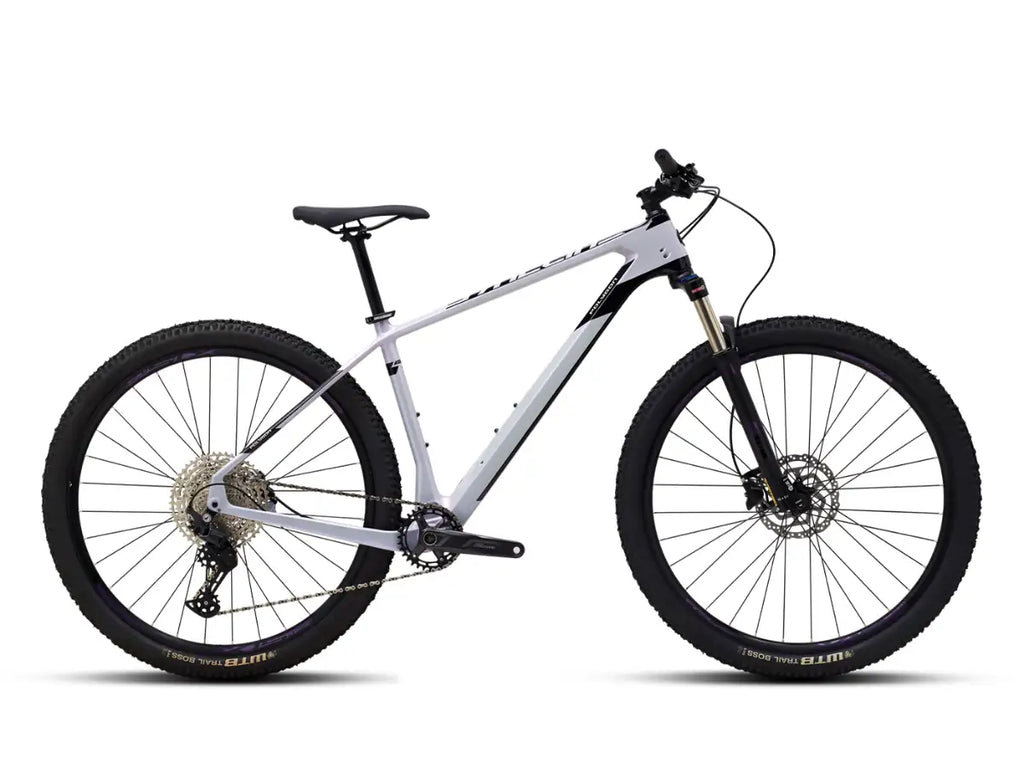

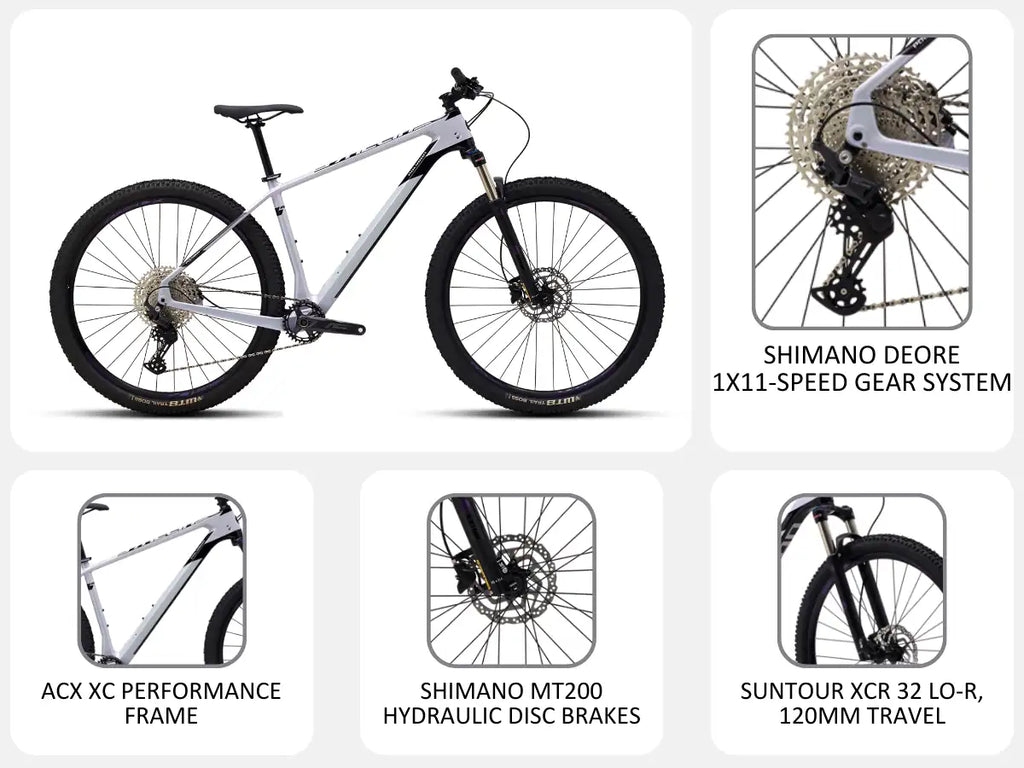

Polygon Syncline C2 29 (Grey)
L(18)
Rs. 127,990.00
Skip to product information
Polygon Syncline C2 29 (Grey)
Rs. 127,990.00
Taxes included.
Shipping calculated at checkout.
Specification
Frameset
Fork
Rear Shock
Crank
Cassette
Rear Derailleur
BB
Chain
Seatpost
Handlebar
Handlestem
Headset
Wheel Size
Tire
Rim
584-22 / 622-22 32H FOR TYRE 584 / 622-35/68
Geometry & Size
| S (27.5”) | M (27.5”) | M (29”) | L (29”) | XL (29”) | |
|---|---|---|---|---|---|
| Height (cm) | 152-165 | 162-175 | 162-175 | 172-185 | 182-195 |
| Seat Tube Length (A) | 380 | 420 | 420 | 460 | 500 |
| Seat Tube Angle (B) | 73 | 73 | 73 | 73 | 73 |
| Effective Seat Tube Angle (C) | 75.3 | 75.3 | 75.3 | 75.3 | 75.3 |
| Head Tube Length (D) | 100 | 120 | 100 | 120 | 140 |
| Head Tube Angle (E) | 67 | 67 | 67 | 67 | 67 |
| Effective Top Tube (F) | 569 | 594.6 | 597.7 | 621 | 649.15 |
| Bb Height (G) | 308.5 | 308.5 | 307.5 | 307.5 | 307.5 |
| Bb Offset (H) | 45 | 45 | 65 | 65 | 65 |
| Chainstay Length (I) | 425 | 425 | 435 | 435 | 435 |
| Wheelbase (J) | 1106.94 | 1134.8 | 1149.5 | 1176.9 | 1204.76 |
| Frame Reach (K) | 410 | 430 | 430 | 450 | 470 |
| Frame Stack (L) | 596.6 | 615 | 633.2 | 651.6 | 670 |
| Standover Height (M) | 690.9 | 729.2 | 730.8 | 763.7 | 779.2 |
