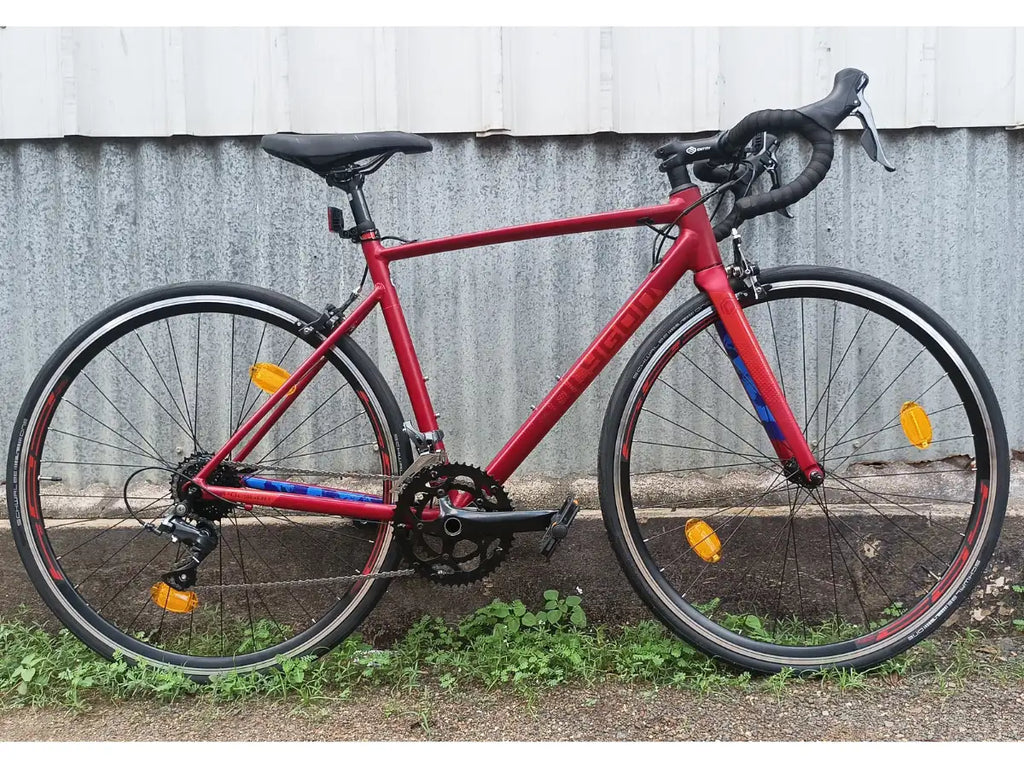

Polygon Strattos S2-(Red)
S(47)
Rs. 56,990.00
Skip to product information
Polygon Strattos S2-(Red)
Rs. 56,990.00
Taxes included.
Shipping calculated at checkout.

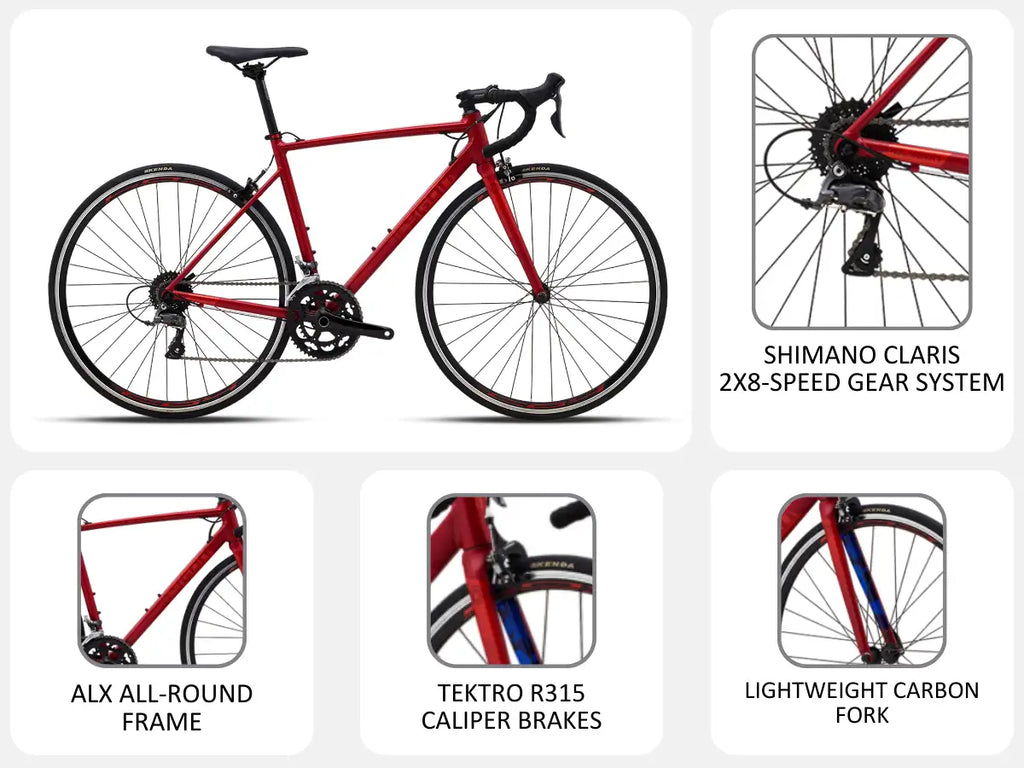

Specifications
Frame-ALX All-Round
Fork -Lightweight Carbon
Front Derailleur-Shimano Claris 2-Speed
Rear Derailleur-Shimano Claris 8-Speed
Shifters-Shimano Claris 2x8-Speed
Brakes-Tektro R315
brake levers-Shimano Claris
Tires-Performance Tire 700c
Rims-C04 Alloy
Bicycle weight-10.3kgs
Handlebar-Entity Sport Alloy
Stem-Entity OE Alloy
Seatpost-Entity Sport Alloy
Saddle-Entity
Pedals-Alloy
Cassette-Shimano CS-HG31 11/30T
Chain-KMC Z8.3
CranksetProWheel Ounce-421C-TT-N 50/34T
No of gears-16-Speed
Size Chart
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 162-170 | 168-176 | 174-181 | 180-187 |
| Seat Tube Length (A) | 460 | 490 | 520 | 550 |
| Seat Tube Angle (B) | 74.5 | 74 | 73.5 | 73.5 |
| Effective Seat Tube Angle (C) | 74.5 | 74 | 73.5 | 73.5 |
| Head Tube Length (D) | 120 | 140 | 160 | 180 |
| Head Tube Angle (E) | 70.5 | 71 | 72 | 72 |
| Effective Top Tube (F) | 525 | 540 | 555.7 | 566.7 |
| Bb Height (G) | 268 | 268 | 268 | 268 |
| Bb Offset (H) | 75 | 75 | 75 | 75 |
| Chainstay Length (I) | 415 | 415 | 415 | 415 |
| Wheelbase (J) | 994.3 | 1001.1 | 1003.1 | 1014.6 |
| Frame Reach (K) | 381 | 385 | 389 | 394.3 |
| Frame Stack (L) | 520 | 540.5 | 563.1 | 582.1 |
| Standover Height (M) | 708 | 736 | 764 | 791 |
